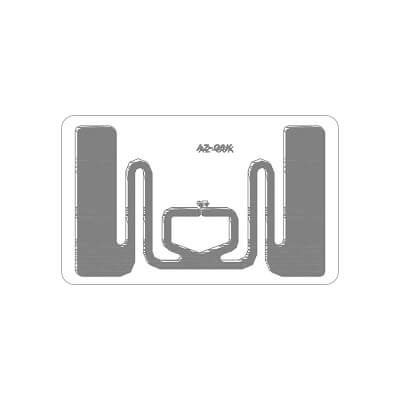

AZ-G6K UHF RFID Label
Air interface protocol
EPC Global Class1 Gen2 ISO 18000-6C
Operational frequency
Global 902-928MHz
Tag dimensions
34*54mm / 1.33”*2.12”
Mechanical Specification
Base Material
PET
Liner Material
80g Art Paper
Bottom Material
Release Paper
Quantity
3500 PCS / Roll (Can Be Customized)
Reel Inner Diameter
76.2 mm / 3″
Tag Dimensions
34 * 54mm / 1.33” * 2.12”
Antenna Dimensions
30 * 50mm / 1.18″ * 1.63″
Electrical Specification
Air Interface Protocol
EPC Global Class1 Gen2 1S018000-6C
Frequency
(US Standard) 902-928 MHz
IC Type
Impinj Monza R6-P
Memory
EPC 96/128 bits;TID 48 bits; Unique TID:48 bits; Password:Shared 32bits Access & Kill, User:32/64bits
IC Life
100,000 Times
Data Retention
10 Years
Application Surface
Non Metal Surface
Reading Range
About 12 m (US Standard, Handheld 1W)
Environmental Resistance
Operating temperature
-20°C-80°C
Storage Temperature
20°C-30°C
Storage Humidity
20-90 % Relative Humidity
Shelf Life
20°C-30°C, 40-60% Relative Humidity, More Than 2 Years
Application Area
Logistics & Supply Chain
Retail & Apparel
