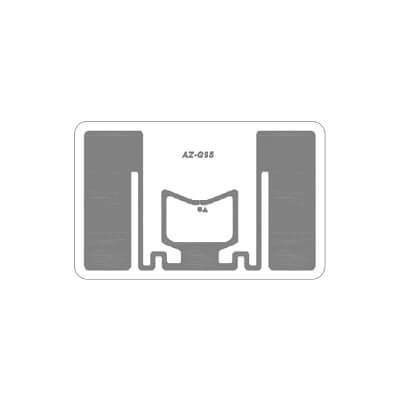

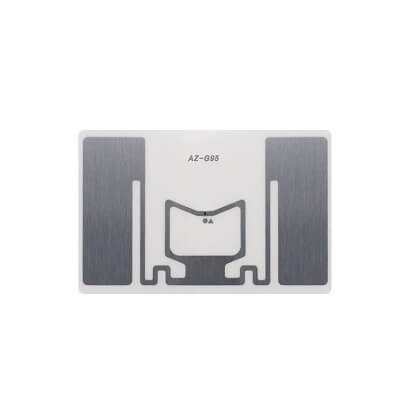

AZ-G95 UHF RFID Label
Air interface protocol
EPC Global Class1 Gen2 ISO 18000-6C
Operational frequency
Global 902-928MHz
Tag dimensions
54*34mm / 2.12”*1.33”
Mechanical Specification
Base Material
PET
Liner Material
80g Art Paper
Bottom Material
Release Paper
Tag Pitch
40.005mm
Quantity
2000 PCS / Roll (Can Be Customized)
Reel Inner Diameter
76.2 mm / 3″
Tag Dimensions
54 * 34mm / 2.12” * 1.33”
Antenna Dimensions
50 * 30mm / 1.63″ * 1.18″
Electrical Specification
Air Interface Protocol
EPC Global Class1 Gen2 1S018000-6C
Frequency
(US Standard) 902-928 MHz
IC Type
NXP UCODE 9
Memory
EPC 96 bits;TID 48 bits; Unique TID:48 bits; Password:Shared 32bits Access & Kill, User:0
IC Life
100,000 Times
Data Retention
10 Years
Application Surface
Non Metal Surface
Reading Range
About 11 m (US Standard, Handheld 1W)
Environmental Resistance
Operating temperature
10°C – 40°C
Storage Temperature
-20°C – 50°C
Storage Humidity
20-90 % Relative Humidity
Shelf Life
20°C-30°C, 40-60% Relative Humidity, Inside the Static Bag More Than 2 Years
Application Area
Logistics & Supply Chain
Retail & Apparel
Get a Quote / Datasheet
