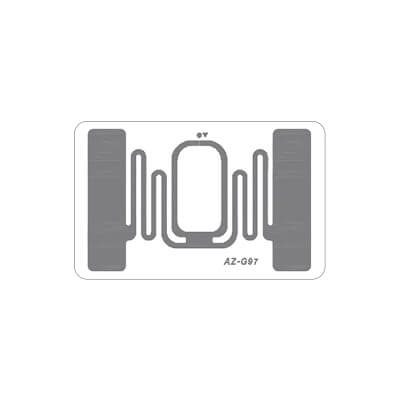

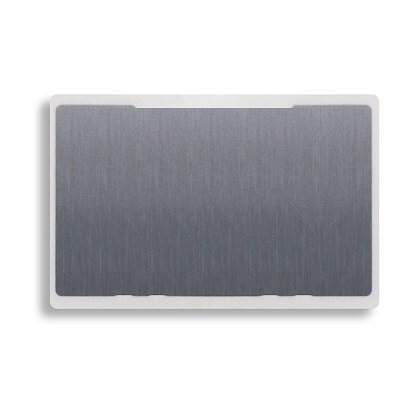

AZ-G97 UHF RFID Label
Air interface protocol
EPC Global Class1 Gen2 ISO 18000-6C
Operational frequency
Global 902-928MHz
Tag dimensions
47*31mm / 1.85”*1.22”
Mechanical Specification
Base Material
PET
Liner Material
80g Art Paper
Bottom Material
Release Paper
Tag Pitch
34.925mm
Quantity
2000 PCS / Roll (Can Be Customized)
Reel Inner Diameter
76.2 mm / 3″
Tag Dimensions
47 * 31mm / 1.85” * 1.22”
Antenna Dimensions
44 * 28mm / 1.73″ * 1.1″
Electrical Specification
Air Interface Protocol
EPC Global Class1 Gen2 1S018000-6C
Frequency
(US Standard) 902-928 MHz
IC Type
NXP UCODE 9
Memory
EPC 96 bits;TID 48 bits; Unique TID:48 bits; Password:Shared 32bits Access & Kill, User:0
IC Life
100,000 Times
Data Retention
10 Years
Application Surface
Non Metal Surface
Reading Range
About 9 m (US Standard, Handheld 1W)
Environmental Resistance
Operating temperature
-20°C – 80°C
Storage Temperature
20°C – 30°C
Storage Humidity
20-90 % Relative Humidity
Shelf Life
20°C – 30°C, 40 – 60% Relative Humidity, More Than 2 Years
Application Area
Logistics & Supply Chain
Retail & Apparel
