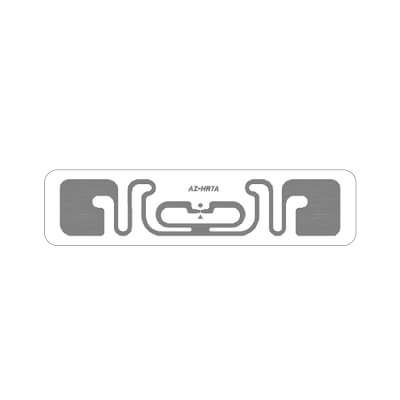

AZ-HR7A UHF RFID Label
Air interface protocol
EPC Global Class1 Gen2 ISO 18000-6C
Operational frequency
Global 902-928MHz
Tag dimensions
76*20mm / 2.99”*0.78”
Mechanical Specification
Base Material
PET
Liner Material
80g Art Paper
Bottom Material
Release Paper
Tag Pitch
25.4mm
Quantity
2000 PCS / Roll (Can Be Customized)
Reel Inner Diameter
76.2 mm / 3″
Tag Dimensions
76*20mm / 2.99”*0.78”
Antenna Dimensions
70 * 14mm / 2.75″ * 0.55″
Electrical Specification
Air Interface Protocol
EPC Global Class1 Gen2 1S018000-6C
Frequency
(US Standard) 902-928 MHz
IC Type
Impinj M730
Memory
EPC 128 bits;TID 48 bits; Unique TID:48 bits; Password:Shared 32bits Access & Kill, User:0
IC Life
100,000 Times
Data Retention
10 Years
Application Surface
Non Metal Surface
Reading Range
About 15 m (US Standard, Handheld 1W)
Environmental Resistance
Operating temperature
-20°C – 80°C
Storage Temperature
20°C – 30°C
Storage Humidity
20-90 % Relative Humidity
Shelf Life
20°C – 30°C, 40 – 60% Relative Humidity, More Than 2 Years
Application Area
Logistics & Supply Chain
Retail & Apparel
Get a Quote / Datasheet
Related Products
DTB-C45U UHF RFID Label

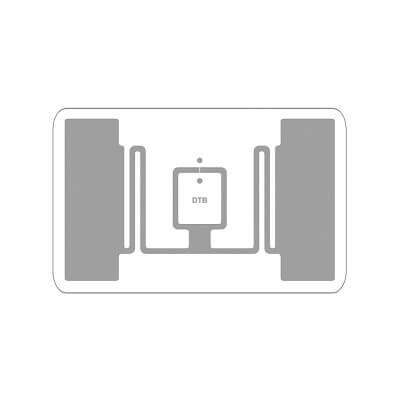

DTB-R50 UHF RFID Label
DTB-C50M UHF RFID Label

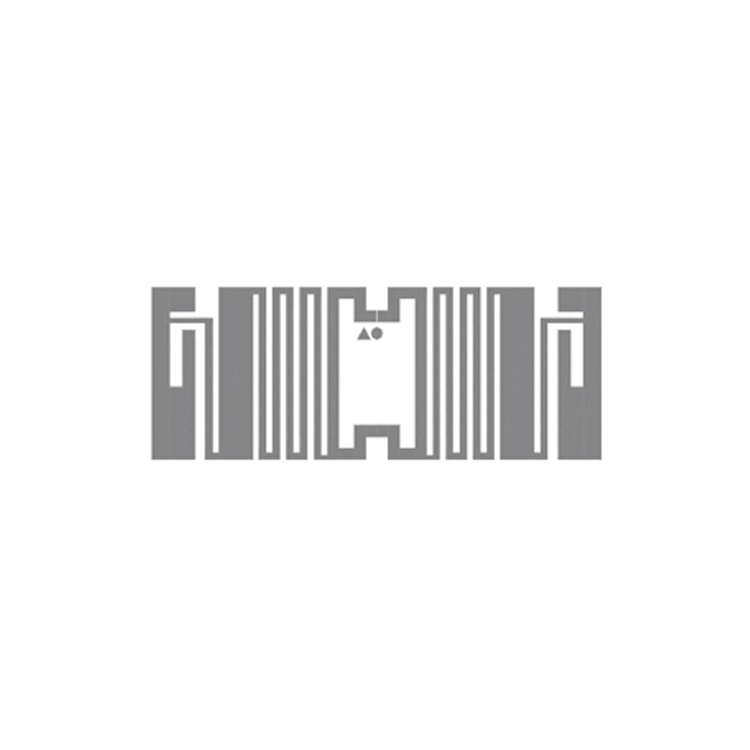

DTB-M40 UHF RFID Inlay
