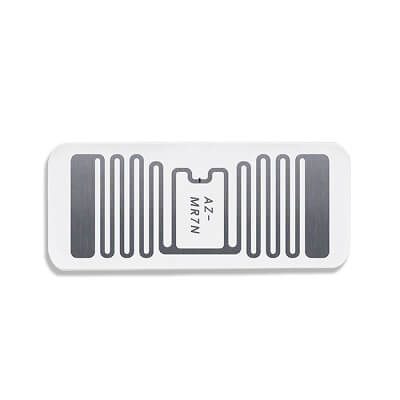

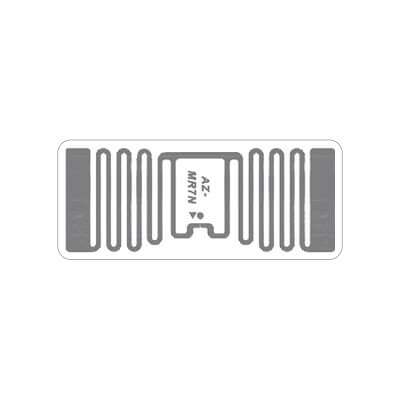

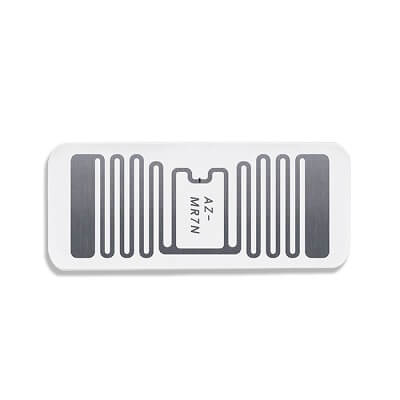

AZ-MR7N Label

AZ-MR7N Label

Air interface protocol
EPC Global Class1 Gen2 ISO 18000-6C

Operational frequency
US 902-928MH

Tag dimensions
47 * 19mm

Mechanical Specification

Base Material
PET

Liner Material
80g Coated Paper

Bottom Material
Release Paper

Tag Pitch
21.59mm

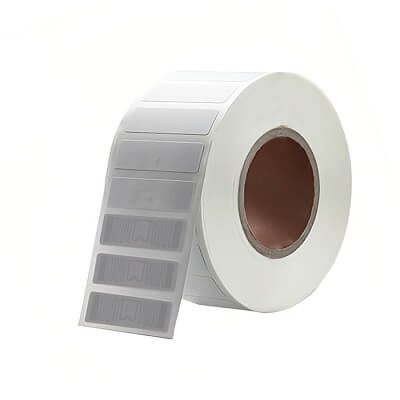

Quantity
2500 PCS/Roll (Can Be Customized)

Reel Inner Diameter
76.2mm

Tag dimensions
47 * 19mm

Antenna Dimensions
42 * 16mm

Electrical Specification

Air interface protocol
EPC Global Class1 Gen2
ISO 18000-6C

Operational frequency
US 902-928MHz

IC type
Impinj M730

Memory configuration
EPC 128 bits, TID 48 bits; Unique TID: 96 bits. Password: Shared 32 bits Access&Kill, User: 0

IC Life
100,000 Times

Data Retention
10 Years

Application Surface
No Metal Surface

Reading Range
About 8m (US Standard, Handheld 1W)

Environmental Resistance

Operating temperature
-20°C~80°C

Storage Temperature
20°C~30°C

Storage Humidity
20~90 % Relative Humidity

Shelf Life
20°C~30°C,40~60% Relate Humidity, More than 2 Years;

Application Area
