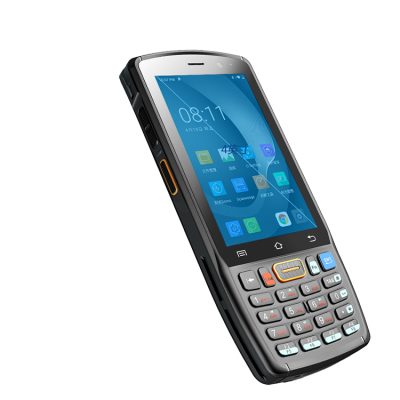

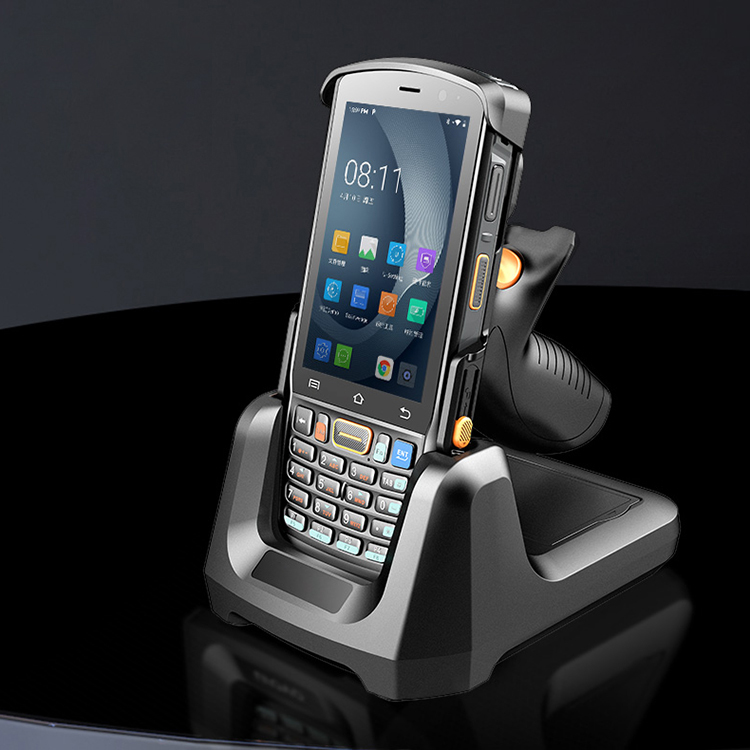

DTB-DT40 HF Handheld RFID Reader
Chip options
HF(13.56MHz)
Size options
250*25mm
PERFORMANCE CHARACTERISTICS
CPU
Qualcomm 1.8GHz Octa core 64bit processor
Memory
2GB RAM / 16GB ROM
3GB RAM / 32GB ROM (optional)
Net weight
1.2g
O.S.
Android 9 Pie, with GMS supported
PHYSICAL CHARACTERISTICS
Display
4″ WVGA (480 x 800 pixel) TFT-LCD
Touch panel
Ultra sensitive capacitive touch panel, works with gloves and wet fingers;
Corning Gorilla Glass;Multi-touch
Dimensions(L×W×H)
164.5mm× 68.6mm×17.5mm
6.48in× 2.7in× 0.69in
Weight
240g/8.47oz (include battery)
Power

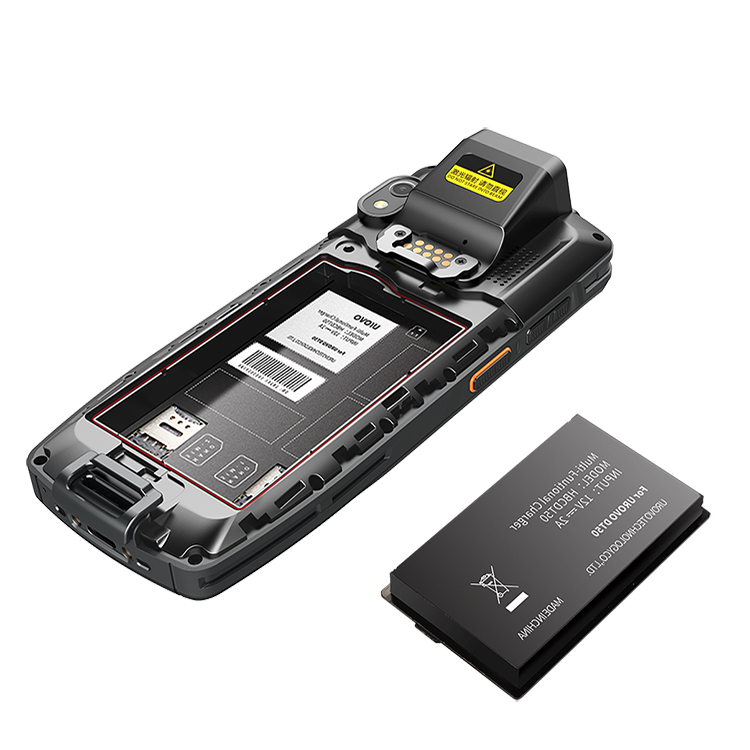

Rechargeable 3.8V/4500 mAh Li-Ion battery
(Typical Operation time ≥10 hours)
fully charges in less than 4 hours
Micro-SD
Micro SD card extension, up to 128GB
SIM
2×Nano-SIM slots
Notification
LED, Speaker, Vibrator
Buttons
Scan button, 0-9 number button, Android standard
button,backspace button, TAB button, “.” button,
switch button, function combination button, custom
button F1-F4, power button, volume control button,PTT button, side Scan buttons
Audio
Dual-microphone support with noise cancellation,
high quality speaker
Connection
USB Type-C, Pogopin 9 pin, 3.5mm Audio Jack
ENVIRONMENTAL
Scanning
1D Laser or 1D/2D imager
Camera
Front-2MP Rear-13MP auto-focus camera with flash LED
NFC
ISO14443 Type A and B; Mifare/FelliCa and
ISO15693 cards;Reader mode, P2P mode and
Card Emulation
DATA CAPTURE
Operating Temperature
– 20°C ~ 60°C (-4°F~140°F)
Storage Temperature
– 40°C ~ 70°C (-40°F~158°F)
Humidity
5%RH ~ 95%RH(non condensing)
Drop Specification
Device can withstand the impact of multiple 1.5m drops to smooth cement floor
Tumble Specification
200 3.2ft./1.0m tumbles; meets and exceeds IEC specifications
Thermal Shock
– 40°C ~ 70°C (-40°F~158°F ) rapid transition
Sealing
IP67
ESD
±15kV air discharge; ±8kV direct discharge
WIRELESS WAN DATA AND VOICE COMMUNICATIONS
Radio Frequency Band
TD-LTE(B40)
FDD-LTE(B1/B2/B3/B4/B5/B7/B8/B12/B17/B19/B20/B28A/B28B)
WCDMA ( B1/B2/B4/B5/B8)
GSM/EDGE/GPRS(850/900/1800/1900)
GPS
GPS, Beidou, Glonass, support A-GPS
Vo-LTE
Support Vo-LTE HD video & voice call
WIRELESS LAN
Radio
IEEE802.11a/b/g/n/ac/d/e/h/i/k/r/v/w;IPv4,IPv6
Data Rates
5GHz:802.11a/n/ac—-up to 433Mbps
2.4GHz:802.11b/g/n—-up to 150Mbps
Operating Channels
2.4G: 1-13
5G: 36,38,40,42,44,46,48,52,56,60,64,100,104,108,
112,116,120,124,128,132,136,140,149,153,157,161,
165(Depend on regulatory rules & certification agency)
Security and Encryption
WEP, WPA/WPA2-PSK(TKIP and AES), EAP-TLS,
EAP-TTLS, PEAP-MSCHAPv2, PEAP-TLS, PEAPGTC, PWD, SIM, AKA
Fast Roaming
PMKID caching, 802.11r, OKC
WIRELESS PAN
Bluetooth
BT4.2+BR/EDR+BLE
INTERACTIVE SENSOR
Sensor
Acceleration sensor, light sensor, proximity sensor
APPLICATION
U-Home
U-setting, Scanwedge, AutoInstall, FeatureSetting.
Application Area
Logistics & Supply Chain
Retail & Apparel
Library Management
Event Management
Healthcare
Access Control
Member Management
Goods Certified
