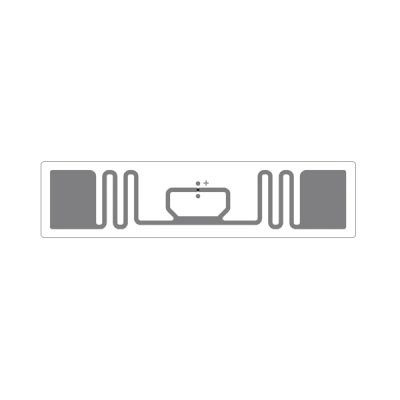

DTB-ER62 UHF RFID Label

DTB-ER62 UHF RFID Label

Air interface protocol
EPC Global Class1 Gen2 ISO 18000-6C

Operational frequency
(US Standard) 902-928 MHz

Tag dimensions
76*20mm

Mechanical Parameters

Base Material
PET

Liner Material
80g Coated Paper

Bottom Material
Release Paper

Tag Pitch
25.4mm

Quantity
2500 PCS / Roll (Can Be Customized)

Reel Inner Diameter
76.2 mm

Tag Dimensions
76 * 20 mm

Antenna Dimensions
70 * 14 mm

Electrical Parameters

Air Interface Protocol
EPC Global Class1 Gen2 ISO18000-6C

Frequency
(US Standard) 902-928 MHz

IC Type
Impinj Monza R6-P(Can Be Customized)

Memory
EPC 96 bits (Expand 128 bits); TID 96 bits; User Memory:32 bits (Expand 64 bits)

IC Life
100,000 Times

Data Retention
10 Years

Application Surface
Non Metal Surface

Reading Range
About 10 m (US Standard, Handheld 1W)

Unwinding Diagram

Operating Temperature
-20°C~80°C

Storage Temperature
20°C~30°C

Storage Humidity
20~90 % Relative Humidity

Shelf Life
20°C~30°C,40~60% Relate Humidity. More than 2 Years.

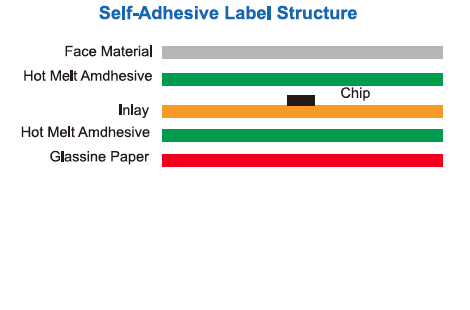

ER62-Self-Adhesive Label Structure

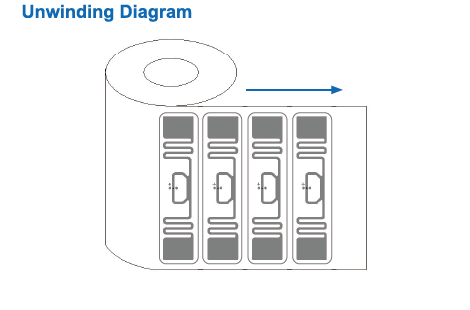

ER62-Unwinding Diagram

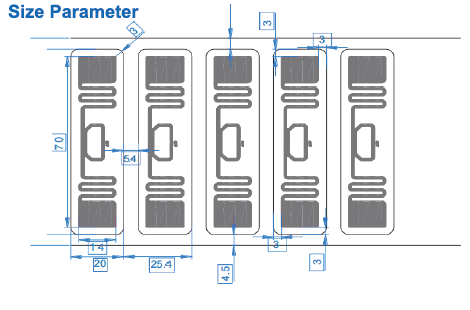

ER62-Size Parameter

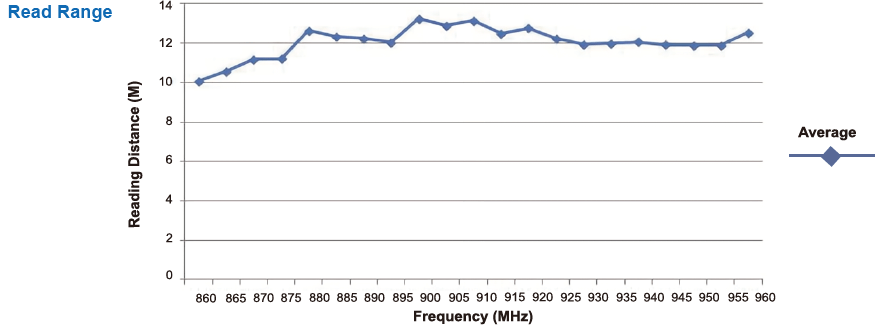

ER62-Read Range

Application Area
