DTB-FLE9525 Flexible Anti-metal RFID Tag

DTB-FLE9525 Flexible Anti-metal RFID Tag

Air interface protocol
EPC Global Class1 Gen2 ISO 18000-6C

Operational frequency
US 902-928MH

Tag dimensions
95*25*0.8mm / 3.74”*0.98”*0.03”

Mechanical Specification

Substrate
PET

Weight
2.1g / pc

Backing paper
Glassine paper

Surface material
White PET

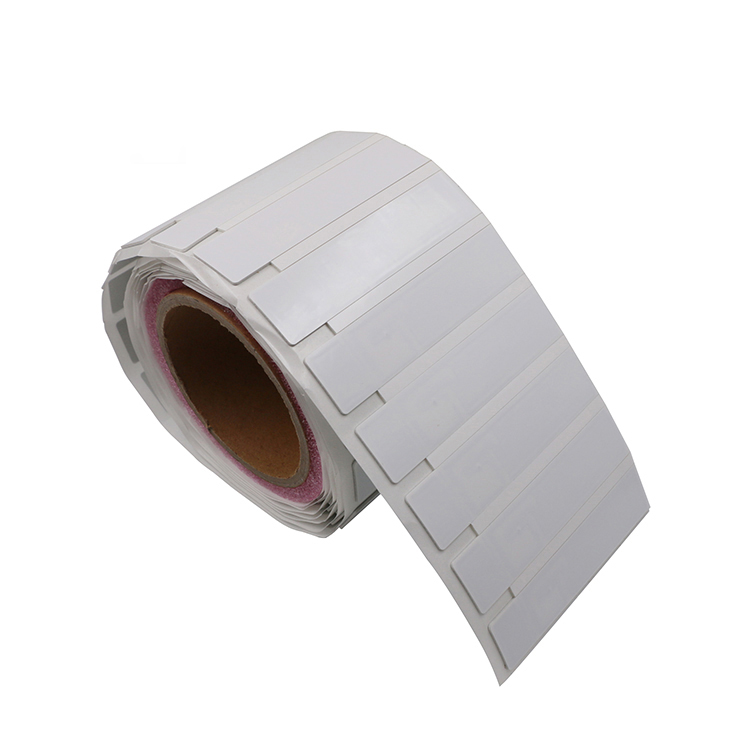

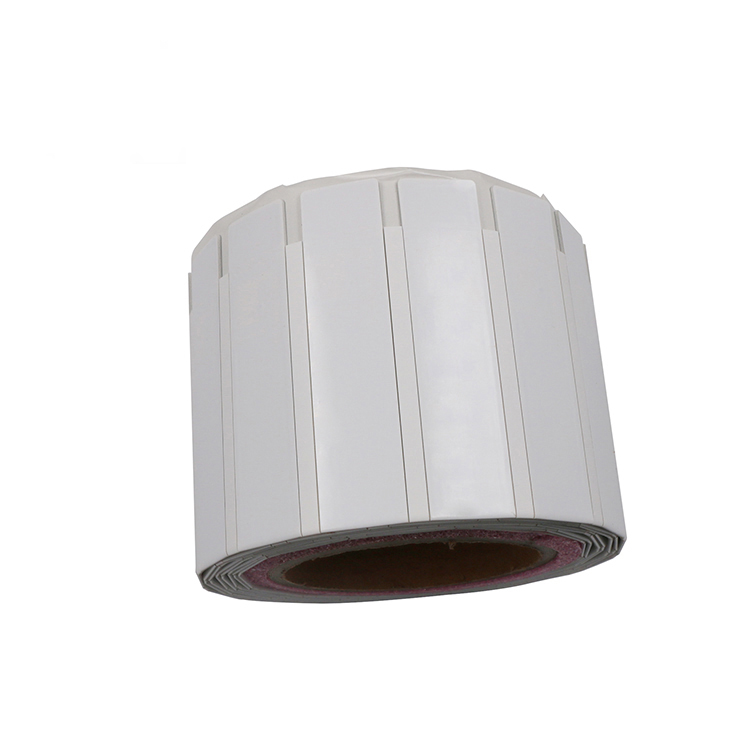

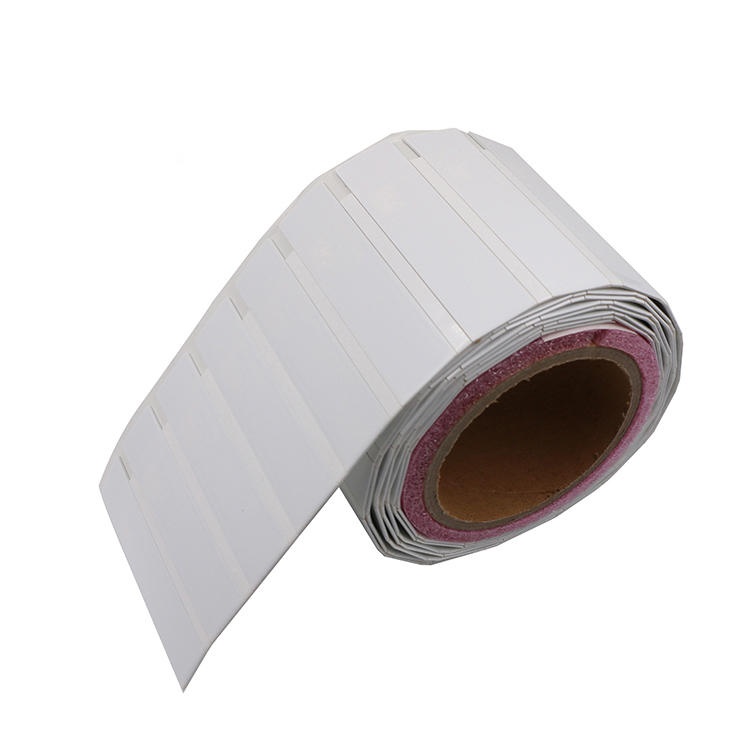

Delivery format
1000 pcs on reel

Pitch on reel
29.482mm / 1.16”

Reel core inner diameter
76mm / 3”

Tag dimensions
95*25*0.8mm / 3.74”*0.98”*0.03”

Electrical Specification

Device type
Class 1 Generation 2 passive
UHF RFID transponder

Air interface protocol
EPC Global Class1 Gen2
ISO 18000-6C

Operational frequency
US 902-928 MHz

IC type
Monza R6 (In addition to the special requirements)

Memory configuration
EPC 96 bits; Unique TID 48 bits;User Memory 0 bits

Read range
Up to 4 m / 13ft

Environmental Resistance

Operating temperature
-40°C~85°C / -40°F~185°F

Ambient temperature
-20°C~50°C / -4°F~122°F

Storage condition
20%~90% relative humidity

Expected lifetime
2 years in normal operating conditions

Application Area
