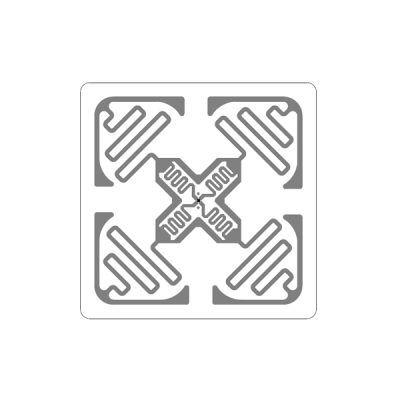

DTB-H47 UHF RFID Label

DTB-H47 UHF RFID Label

Air interface protocol
EPC Global Class1 Gen2 ISO 18000-6C

Operational frequency
Global 860-960MHz

Tag dimensions
50x50mm / 1.97”x1.97”

Mechanical Specification

Substrate
PET

Weight
1g / pc

Face material
Coated Paper

Liner
Glassine Liner

Delivery format
2000 pcs on reel

Pitch on reel
58.964mm / 2.32”

Reel core inner diameter
76mm / 3”

Tag dimensions
50x50mm / 1.97”x1.97”

Electrical Specification

Device type
Class 1 Generation 2 passive UHF RFID transponder

Air interface protocol
EPC Global Class1 Gen2 ISO 18000-6C

Operational frequency
Global 860-960MHz

IC type
Monza 4QT ( In addition to the
special requirements)

Memory configuration
EPC 128 bits; Unique TID 48 bits;
User Memory 512 bits

Read range
Up to 7m / 22.97ft

Environmental Resistance

Operating temperature
-20°C～80°C / -4°F～176°F

Ambient temperature
-20°C～80°C / -4°F～176°F

Storage condition
2 year at +20°C / 50％ RH

Expected lifetime
2 years in normal operating conditions
