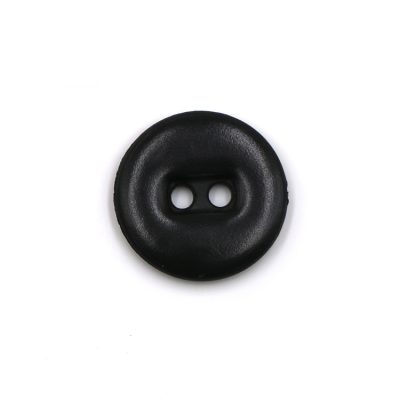

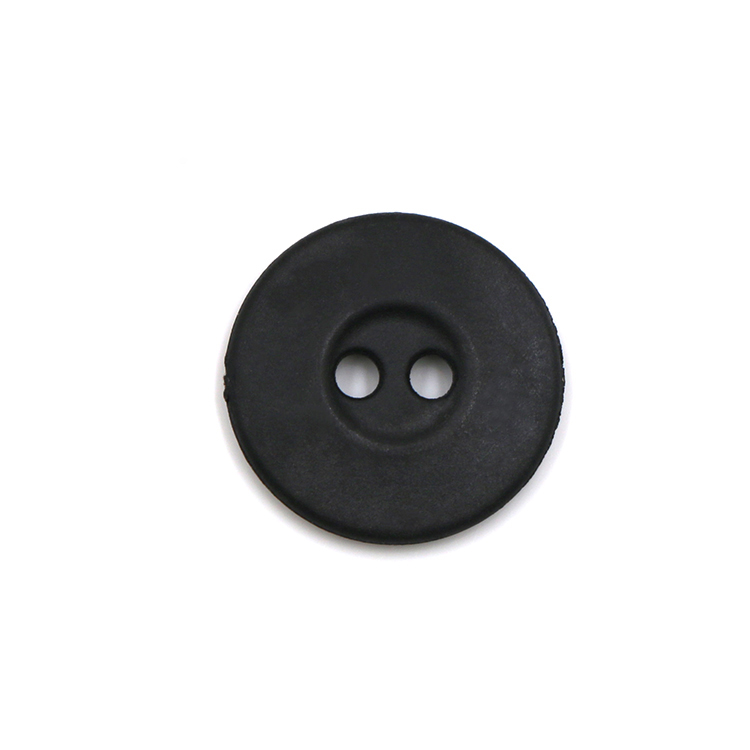

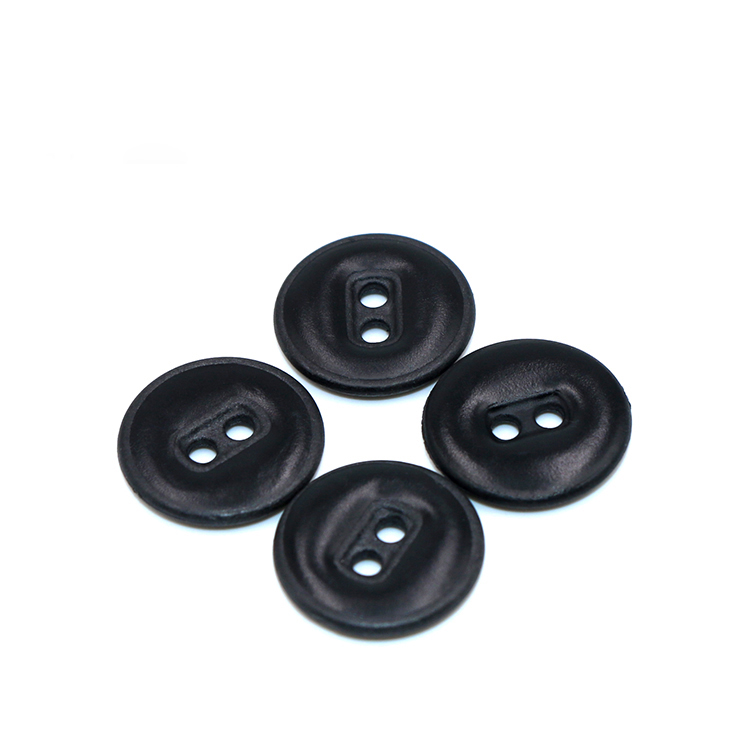

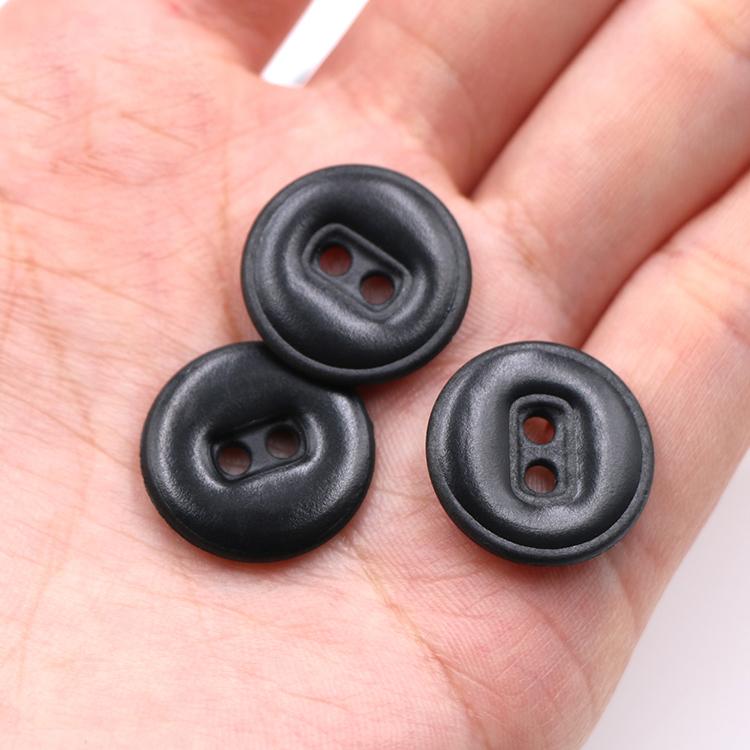

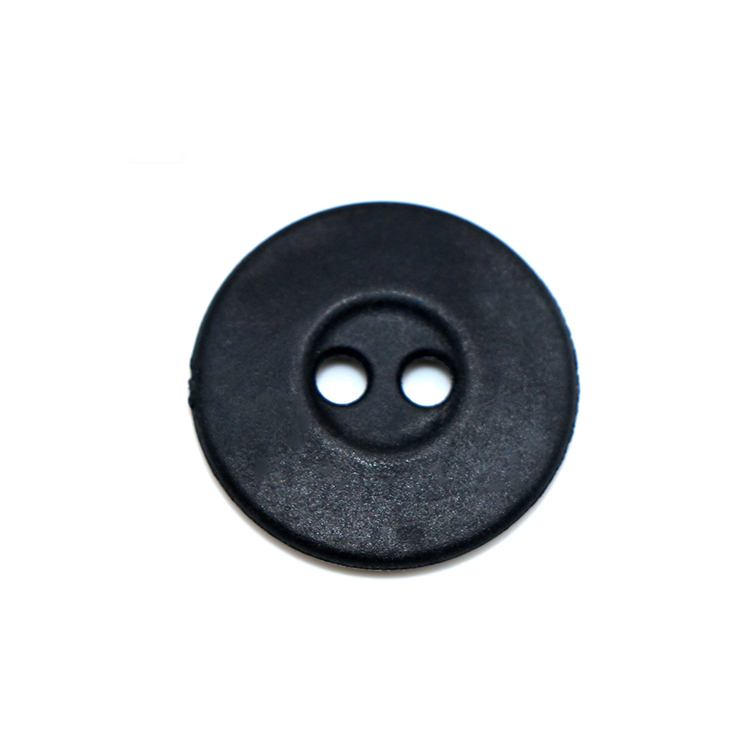

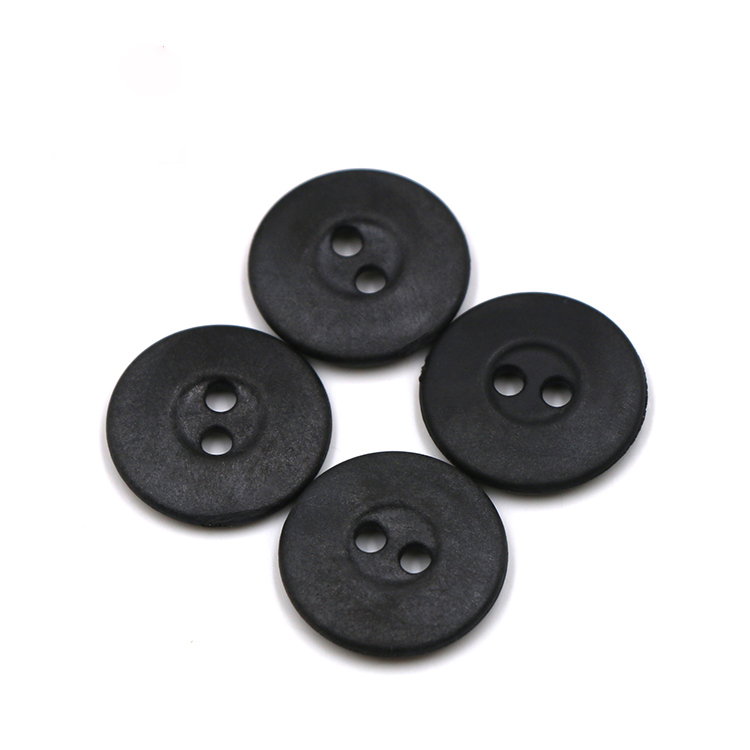

DTB-LTD18 UHF PPS Laundry RFID Tag

DTB-LTD18 UHF PPS Laundry RFID Tag

Air interface protocol
EPC Global Class1 Gen2 ISO 18000-3

Operational frequency
Global 902-928 MHz

Tag dimensions
Dia 18mm / Dia 0.71”

Mechanical Specification

Substrate
PPS and high temperature epoxy adhesive

Weight
2 g/piece

Surface color
Black

Electrical Specification

Air interface protocol
EPC Class1 Gen2; ISO18000-6C

Operational frequency
Global 902-928MHz

IC type
NXP Ucode7/7M

Memory configuration
EPC 128bits

Fixed read and write
Reader (non-metal)
Above 0.4m (4W EIRP, using Alien9900 fixed reader, if its a reader, the
reading distance may be different)

Handheld reading and writing
Device (non-metallic)
Above 0.1m
Technical specifications
(using Alien9011 handheld reader in open outdoor situations. If other handhelds are used, the reading distance may be different)

Environmental Resistance

Operating temperature
-25°C~110°C

Storage temperature
-40°C~120°C

Storage humidity
5%~95% RH

Expected lifetime
2 years in normal operating conditions

Application Area
