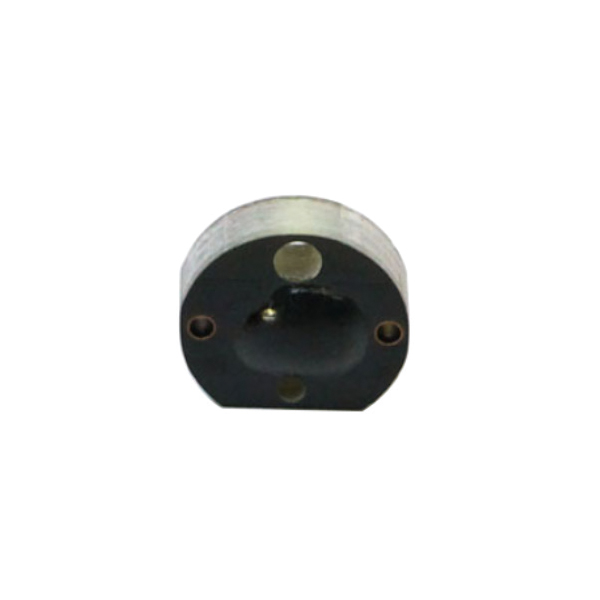

DTB-PCBD10 Anti-metal Tag
Air interface protocol
EPC Global Class1 Gen2 ISO 18000-6C
Operational frequency
US 902-928MHz, EU 865-868MHz
Tag dimensions
Dia 10mm / Dia 0.39”
Mechanical Specification
Size
Dia 10mm / Dia 0.39”
Thickness
3.0mm(Excluding chip parts);3.7mm(Including chip parts)
Weight
0.5g
Material
FR4(PCB)
Color
Black(Optional red, blue, green, white)
Installation method
Glue, screw
Electrical Specification
Device type
Class 1 Generation 2 passive
UHF RFID transponder
Air interface protocol
EPC Global Class1 Gen2 ISO 18000-6C
Operational frequency
US 902-928MHz, EU 865-868MHz
IC type
Alien Higgs 3
Memory configuration
EPC 96 bits(Can be extended to 480 bits);
Unique TID 64 bits; User Memory 512 bits
Application medium
Metal surface
Reading range(Fixed reader)
1.5m US 902-928MHZ
1.3m EU 865-868MHZ
Reading range(Handheld reader)
1.0m US 902-928MHZ
0.95m EU 865-868MHZ
Data storage
50 years
Read and write times
100,000 times
Warranty
1 year
Environmental Resistance
Operating temperature
-40°C~100°C / -40°F~212°F
Ambient temperature
-40°C~150°C / -40°F~302°F
Sealing
IP68
Certification
Reach, RoHS, CE
Application Area
Logistics & Supply Chain
Retail & Apparel
