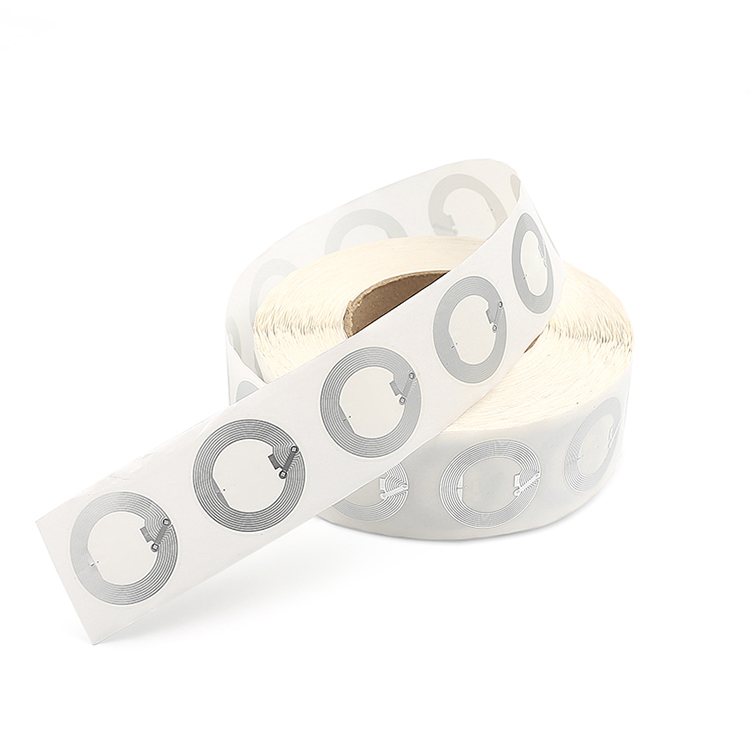

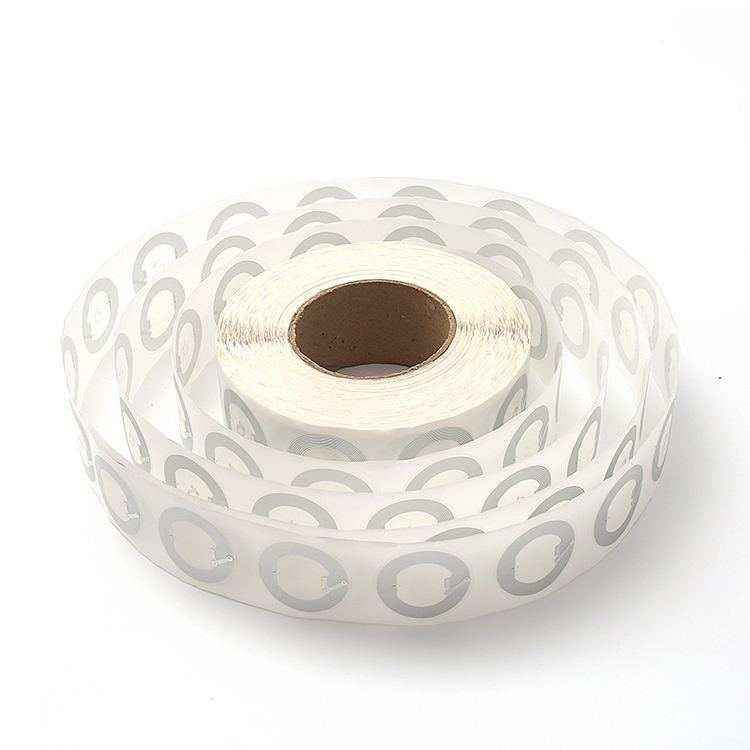

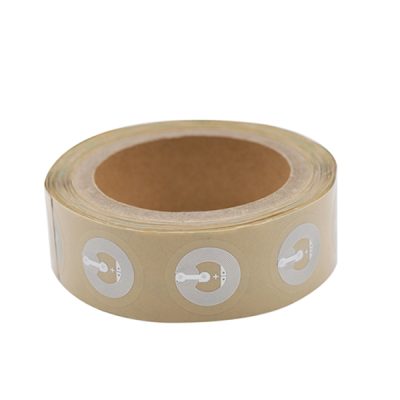

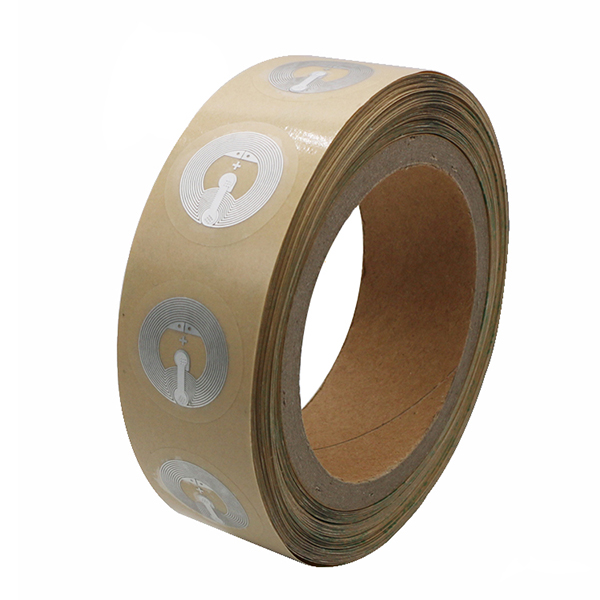

NFC/HF RFID Inlay
Air interface protocol
ISO/IEC 15693
Operational frequency
Global 13.56MHz
Specification
Frequency
13.56MHz
Protocol
ISO/IEC 14443A ISO 15693
Key Advantages
ISO 9001:2008 Approved;
100% Quality Tested;
Flexible MOQ
Pitch on reel
21.59mm / 0.85”
Reel core inner diameter
153.42mm / 6.04”
Tag dimensions
40x15mm / 1.57”x1.59”
Custom HF RFID Inlay Options
Materials of NFC/HF RFID Inlay
- Antenna material: Aluminium foil
- Base material: PET
Dimension Options of NFC/HF RFID Inla
MIFARE Series Chips: φ18/22/25/28/30mm, 11*26/22*35/15*52/45*76mm, etc.
NTAG Series Chips: φ12/18/23/25/35mm, 8*18/11*26/15*15/32*32/45*76mm, etc.
ICODE Series Chips: φ22/25/35/45/110mm, 11*26/15*15/15*52/45*45/45*76mm, etc.
Other sizes will be available base on customization.
Reading Distance of NFC/HF RFID Inlay
1-5cm(depending on readers)
Data Endurance of NFC/HF RFID Inlay
More than ten years

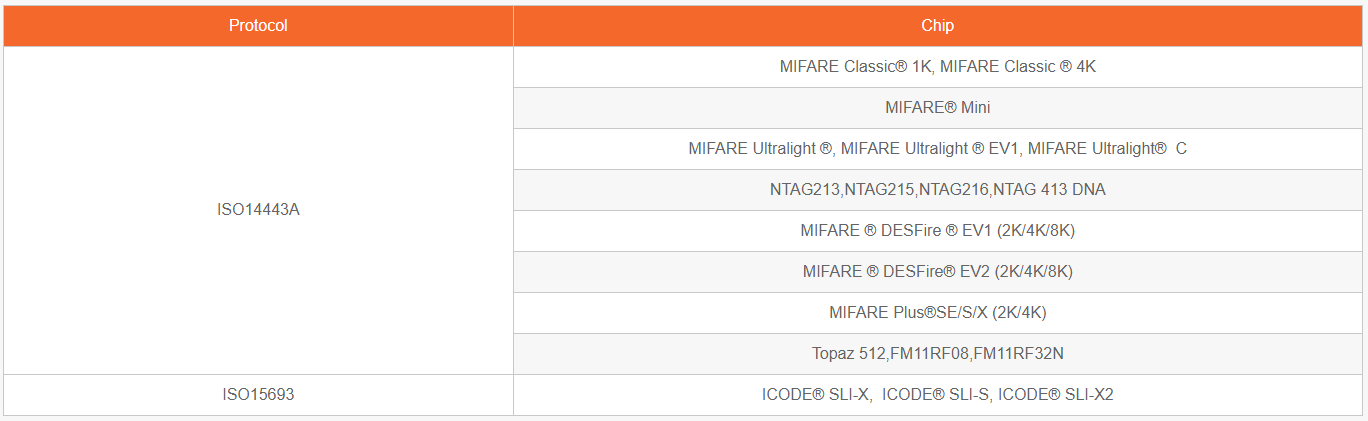

Protocol & Chip Options of NFC/HF RFID Inlay
Application Area
Logistics & Supply Chain
Retail & Apparel
