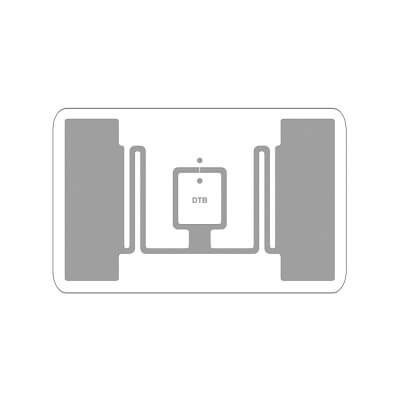

DTB-R50 UHF RFID Label
Air interface protocol
EPC Global Class1 Gen2 ISO 18000-6C
Operational frequency
Global 902-928MHz
Tag dimensions
52*33mm / 2.04”*1.29”
Mechanical Specification
Base Material
PET
Liner Material
80g Coated Paper
Bottom Material
Release Paper
Tag Pitch
37.523mm
Quantity
2500 PCS / Roll (Can Be Customized)
Reel Inner Diameter
76.2 mm / 3″
Tag Dimensions
52*33mm / 2.04”*1.29”
Antenna Dimensions
50 * 30mm / 1.96″ * 1.18″
Electrical Specification
Air Interface Protocol
EPC Global Class1 Gen2 1S018000-6C
Frequency
(US Standard) 902-928 MHz
IC Type
Impinj Monza R6(Can Be Customized)
Memory
EPC 96 bits;TID 96 bits; User Memory:No
IC Life
100,000 Times
Data Retention
10 Years
Application Surface
Non Metal Surface
Reading Range
About 8 m (US Standard, Handheld 1W)
Environmental Resistance
Operating temperature
-20°C – 80°C
Storage Temperature
20°C – 30°C
Storage Humidity
20-90 % Relative Humidity
Shelf Life
20°C – 30°C, 40 – 60% Relative Humidity, More Than 2 Years
Application Area
Logistics & Supply Chain
Retail & Apparel
Get a Quote / Datasheet
Related Products

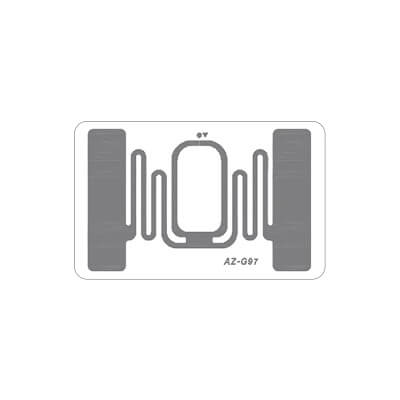

AZ-G97 UHF RFID Label
