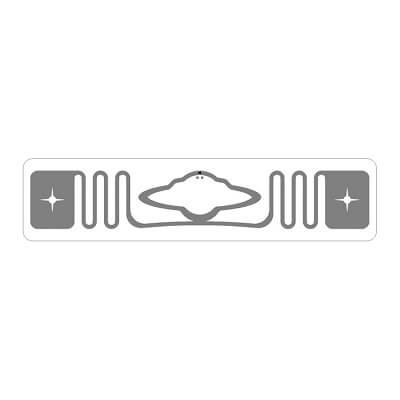

DTB-U70A UHF RFID Label
Air interface protocol
EPC Global Class1 Gen2 ISO 18000-6C
Operational frequency
Global 902-928MHz
Tag dimensions
73*17mm / 2.87”*0.66”
Mechanical Specification
Base Material
PET
Liner Material
80g Coated Paper
Bottom Material
Release Paper
Tag Pitch
25.797mm
Quantity
2500 PCS / Roll (Can Be Customized)
Reel Inner Diameter
76.2 mm / 3″
Tag Dimensions
73*17mm / 2.87”*0.66”
Antenna Dimensions
70 * 12mm / 2.75″ * 0.47″
Electrical Specification
Air Interface Protocol
EPC Global Class1 Gen2 1S018000-6C
Frequency
(US Standard) 902-928 MHz
IC Type
NXP UCODE 8(Can Be Customized)
Memory
EPC 128 bits;TID 96 bits; User Memory:No
IC Life
100,000 Times
Data Retention
10 Years
Application Surface
Non Metal Surface
Reading Range
About 10 m (US Standard, Handheld 1W)
Environmental Resistance
Operating temperature
-20°C – 80°C
Storage Temperature
20°C – 30°C
Storage Humidity
20-90 % Relative Humidity
Shelf Life
20°C – 30°C, 40 – 60% Relative Humidity, More Than 2 Years
Application Area
Logistics & Supply Chain
Retail & Apparel
