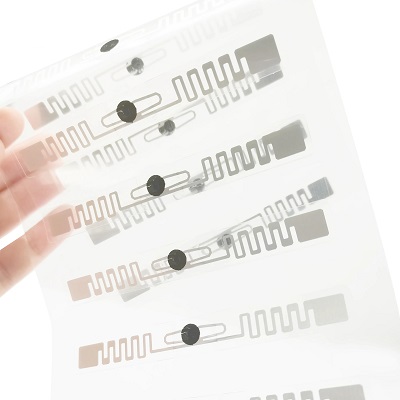

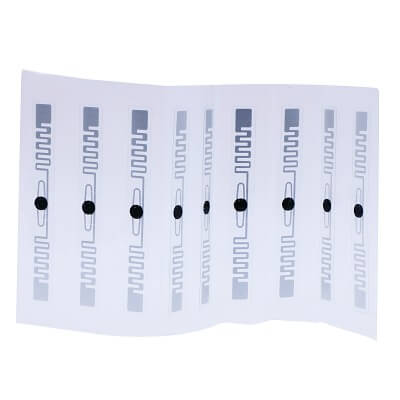

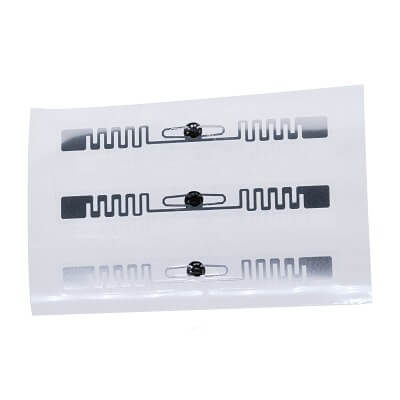

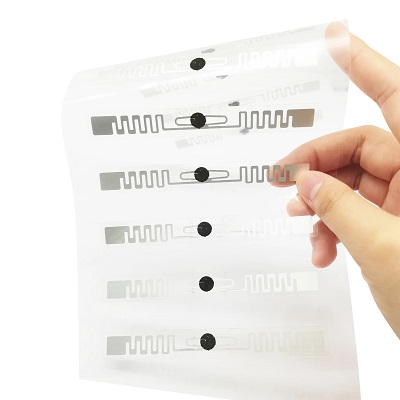

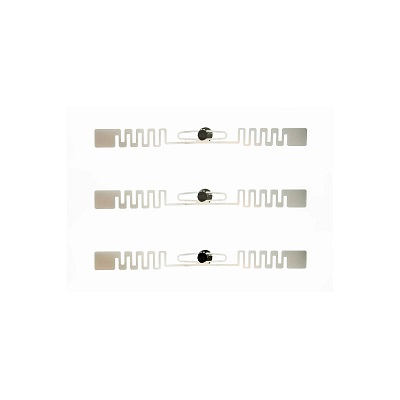

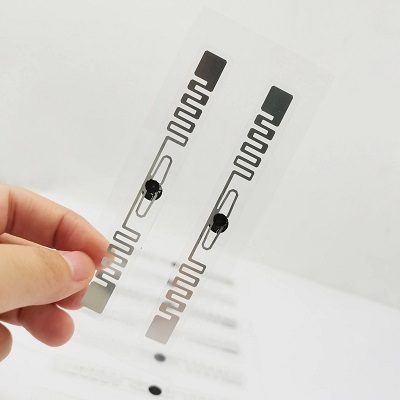

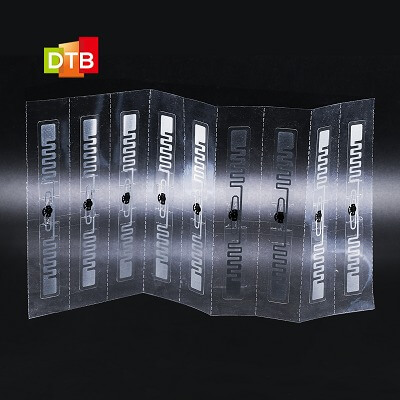

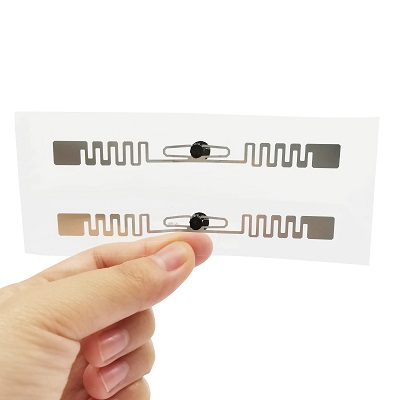

RFID Tamper Proof UHF Car Headlight Sticker Wet Inlay

RFID Tamper Proof UHF Car Headlight Sticker Wet Inlay

Air interface protocol
EPC Global Class1 Gen2 ISO18000-6C

Operational frequency
Global 860-960 MHz

Tag dimensions
96 * 22mm

G9912A-description-1
G9912A-description-2

Intelligent network connection has become an important trend in the development of the automotive industry. With it, the Internet of Vehicles is becoming more and more popular, and it has attracted great attention from all parties.

With the development of the Internet of Vehicles and the continuous improvement of RFID and sensing technologies, the application of electronic tags in automobiles will inevitably become more and more extensive.

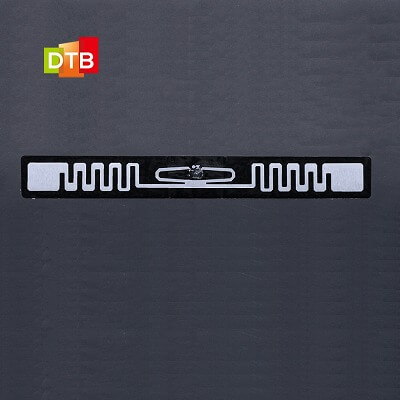

The electronic label of the car light can be attached to the car headlight.

The function is similar to the windshield label, but the difference is: that the windshield label will affect the appearance and sight line, and may also be interfered with by the explosion-proof film. The electronic label of the car light can avoid the above adverse effects.

Product Description

Product Name
RFID Tamper Proof UHF Car Headlight Sticker Wet Inlay

Model number
Headlight Sticker DTB-G9912A

Place of Origin
Shenzhen, Guangdong, China

Tag Size
99*12mm or customized size

Antenna size
85*8mm

Chip
Impinj Monza 4QT or other chip available

Chip Memory
EPC: 128 bits
User: 512 bits

Material
1) Adhesive film
2) Aluminum etched Antenna / Silver printing ink Antenna (Silver printing ink needs customized)
3) PET substrate(transparency or white color)
4) Black ink

Weight
About 1.2g

Frequency
860~960MHz

Protocol
IEC/ISO 18000-6C EPC Class 1 Gen 2

Operating mode
Read&Write

Reading distance
12-25 meters(According to different environments and readers)

Life
≥ 10 years / ≥100,000times

Feature
1. Anti-infrared rays&Anti-UV ray (car lights and sunlight).
2. Anti-tearing (After peeling off the label from the carlight pasting position, the label is damaged after peeling off and cannot be reused).
3. Anti-high temperature
4. Waterproof
5. Strong adhesive
6. Can be customized printing

Printing Option
Logo, Serial number, barcode, QR, Password etc

Application
Parking Management, Car identification, VehicleTracking System

Industry-specific Attributes

Special Features
Tamper Proof

Communication Interface
RFID, UHF

Other

G9912A - Parameter

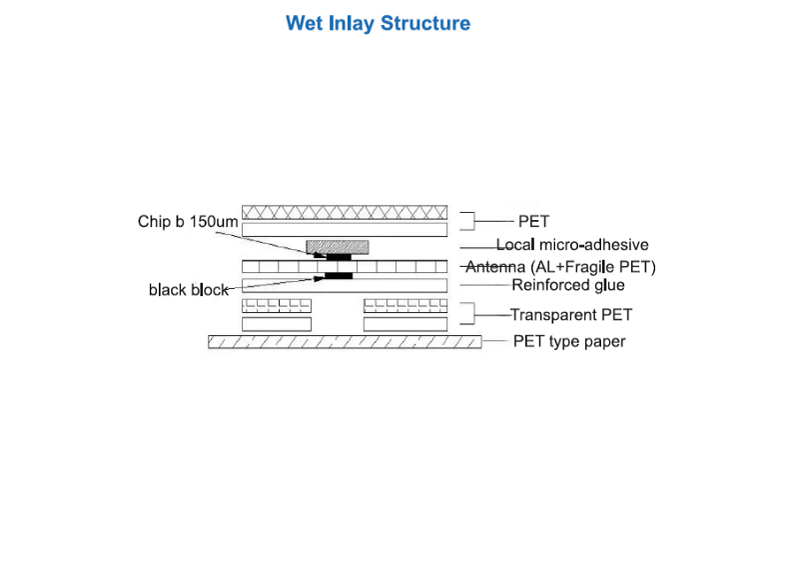

G9912A - Structure

Attribute-list

Supply Ability
2000000 Piece/Pieces per Month

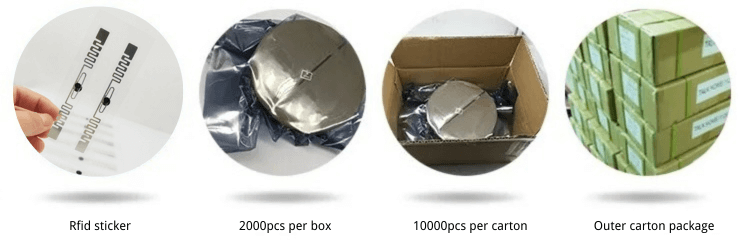

Package

G9912A-pakeage

Lead Time

G9912A-Lead time-v3
