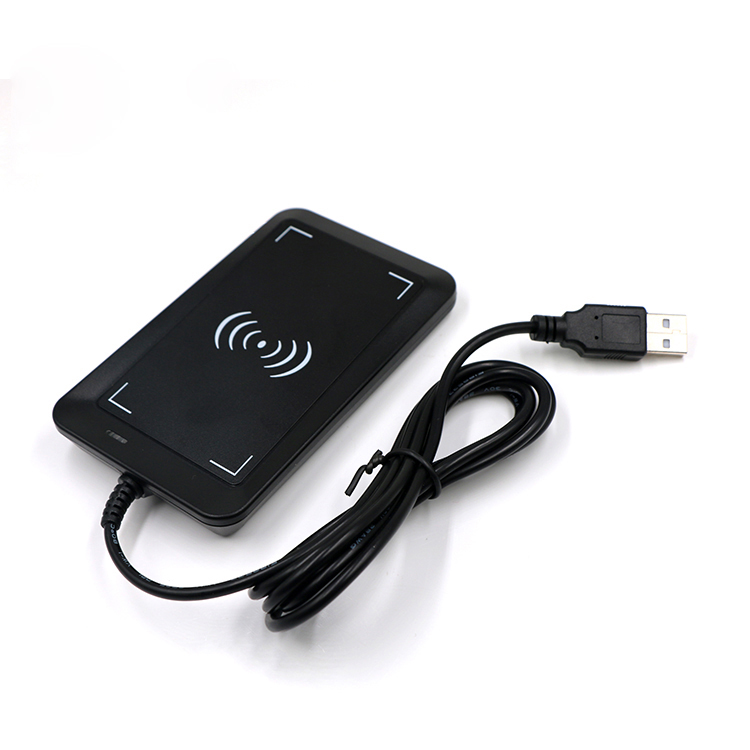

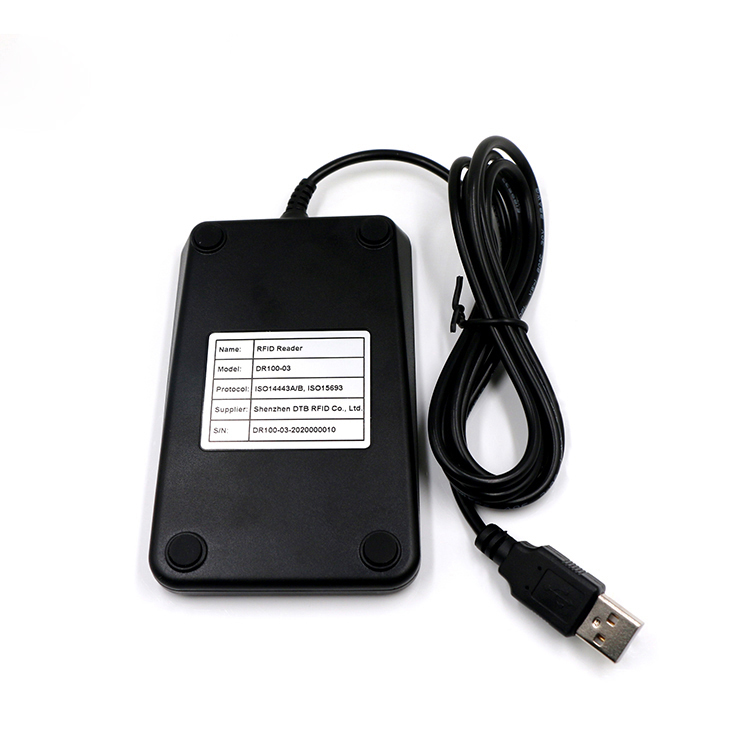

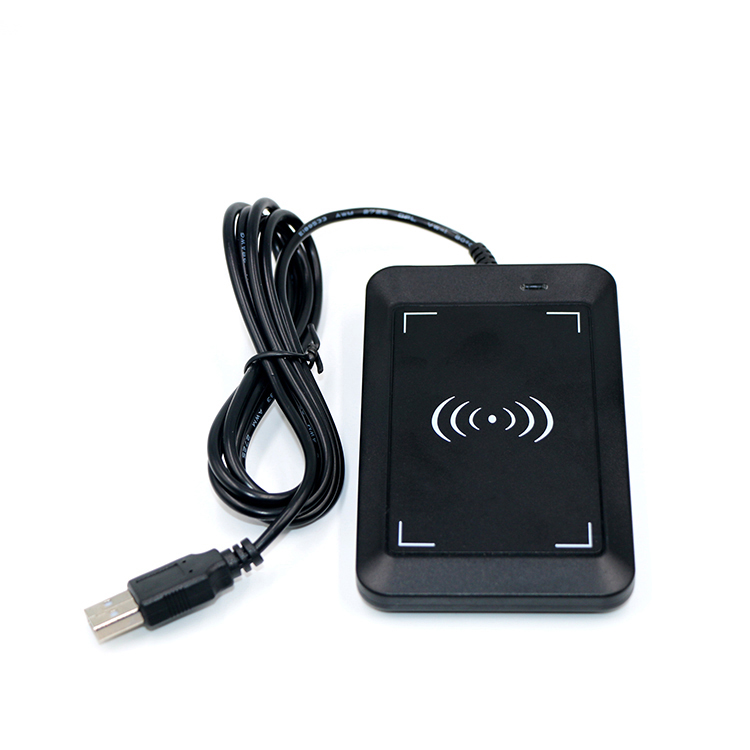

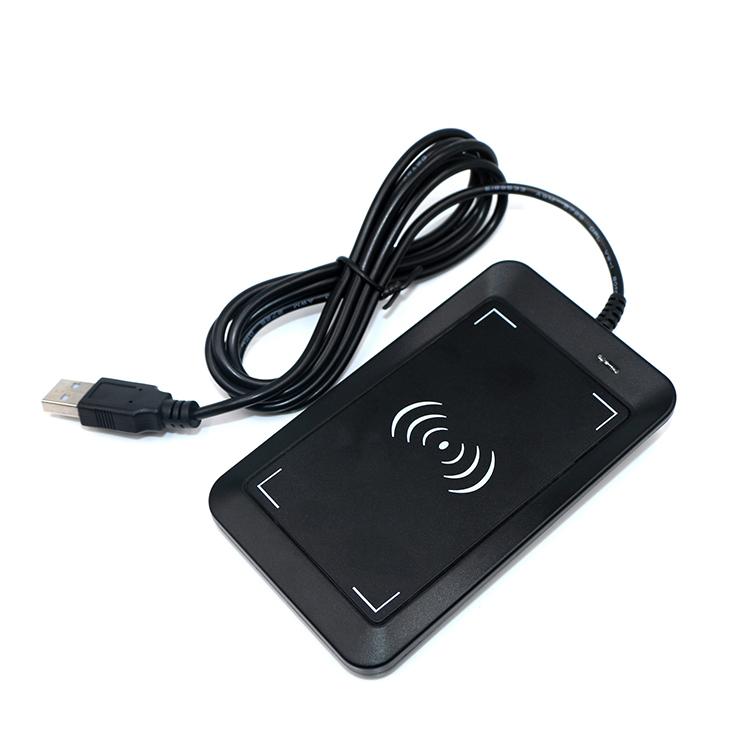

DTB-DR100 HF Desktop RFID Reader
Dimensions
115mm x 70mm
Spectrum Range
HF(13.56MHz)
Electrical Parameters
Input Voltage
DC 3.5V ‒ 5 V / 9V.
Standby Mode Current
< 80mA.
Operating Current
150mA @ 3.5V (26 dBm Output,25°C).
110mA @ 3.5V (18 dBm Output,25°C).
Operating Temperature
– 20 °C – + 70 °C
Storage Temperature
– 20 °C – + 85 °C
Operating Humidity
< 95% (+ 25 °C)
Air Interface Protocol
ISO 14443A/B/ISO 15693/ISO18092
Dimensions
115mm x 70mm
Operating Current
100mA
Power Supply
DC5V USB port
Spectrum Range
HF(13.56MHz)
Supported Regions
US, Canada and other regions following U.S. FCC
Europe and other regions following ETSI EN 302 208
China,Korea,Malaysia
Output Power
18-26 dBm
Output Power Precision
+/- 1dB
Output Power Flatness
+/- 0.2dB
Receive Sensitivity
< -70dBm
Peak Inventory Speed
> 50 pcs/s
Tag Buffer Size
200 pcs @ 96 bit EPC
Tag RSSI
Supported
Host Communication
USB 2.0, RS-232, Wiegand 26, Wiegand 34
Baud Rate
115200 bps ( default and recommended), 38400 bps
Cooling
Air cooling
Operating Temperature
-20℃ to +70℃
Reading Range
0-8c
