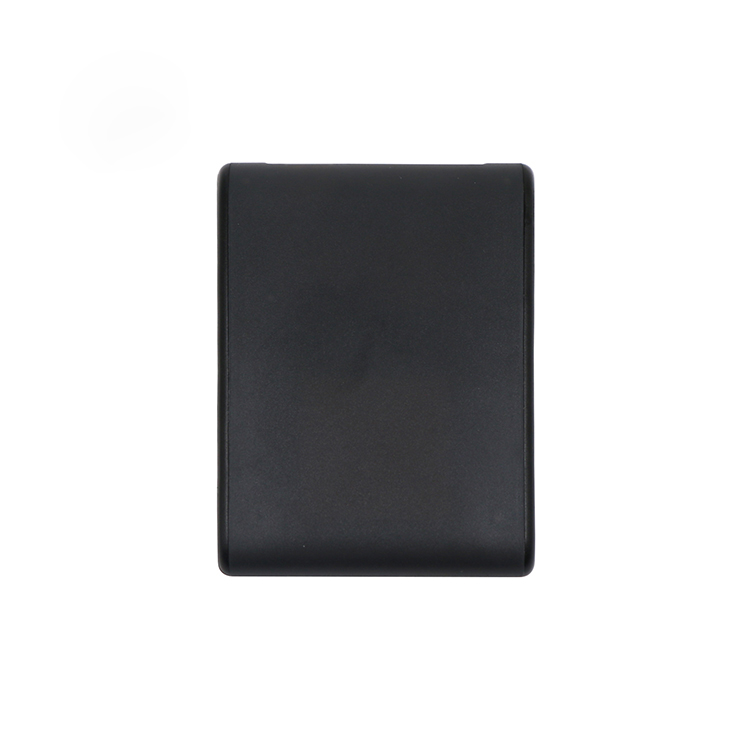

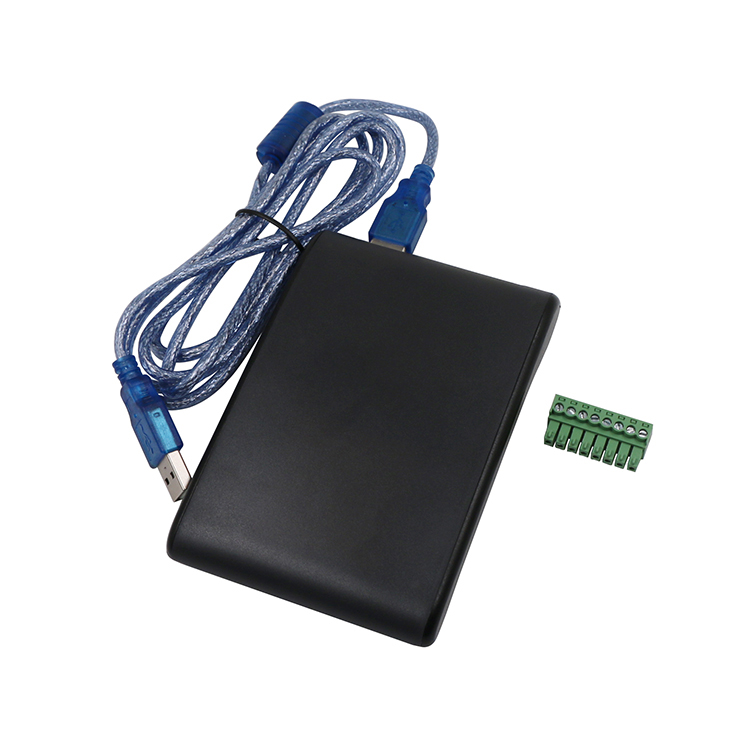

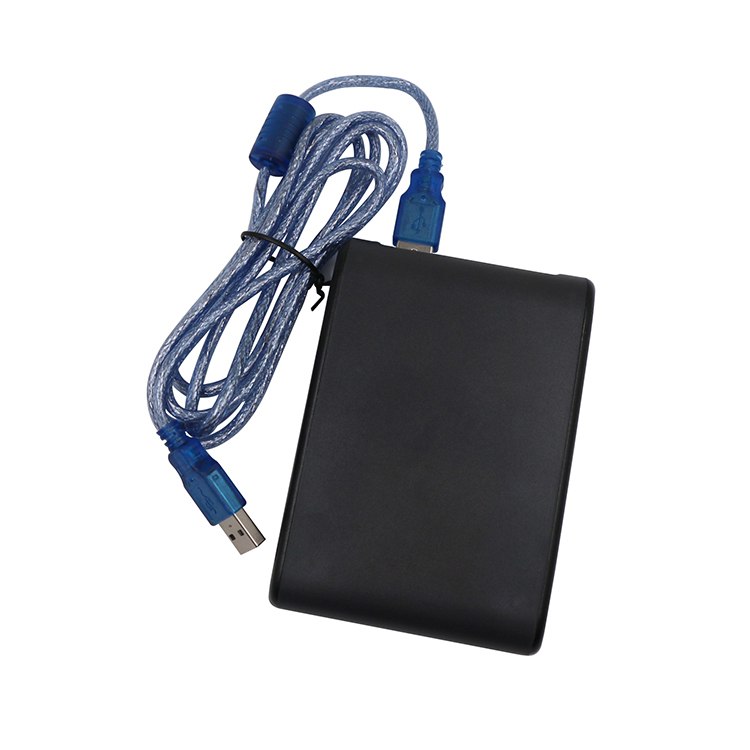

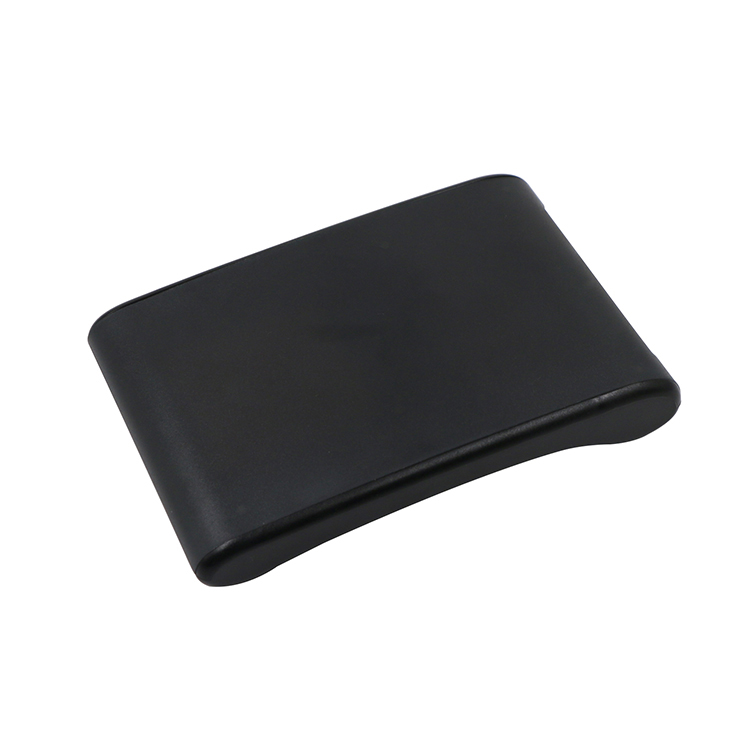

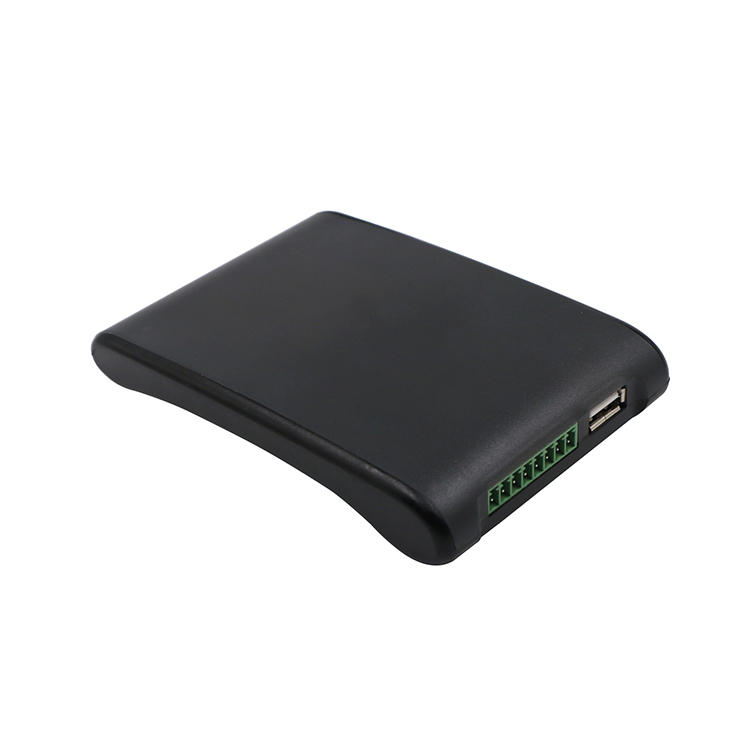

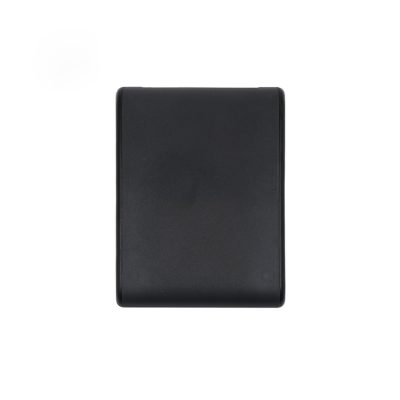

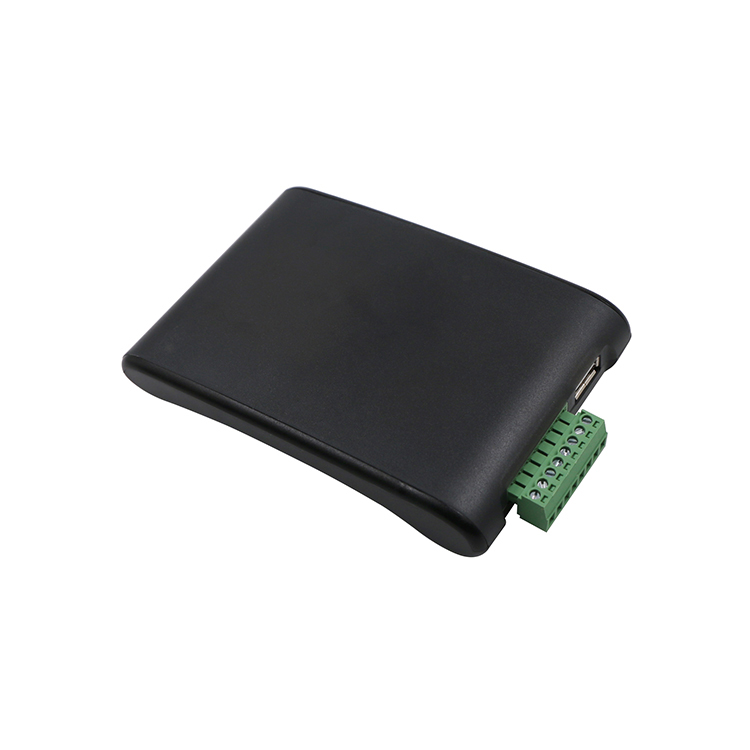

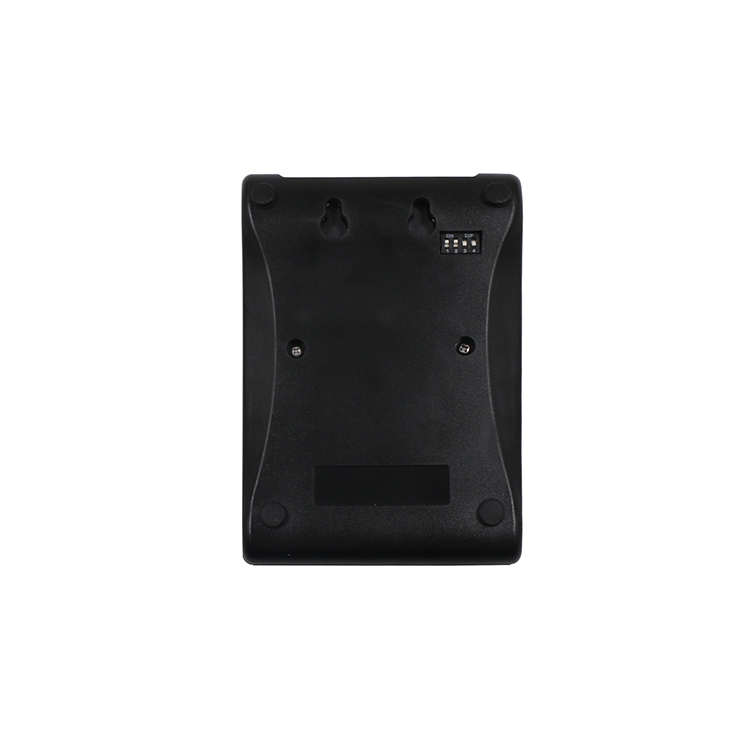

DTB-DR300U UHF Desktop RFID Reader

DTB-DR300U UHF Desktop RFID Reader

Chip options
M-500 micro UHF RFID module inside

Spectrum Range
902Mhz ‒ 928Mhz, 865MHz ‒ 868MHz (Optional)

Advantages

· M-500 micro UHF RFID module inside
· USB charge or independent 9V power supply supported
· D-100 read distance: 80-300cm (tested with Impinj E41b inlay)
· D-101 read distance: 10-50cm (tested with Impinj E41b inlay)
· USB 2.0/ RS-232/ Wiegand 26/ Wiegand 34 supported

Electrical Parameters

Input Voltage
DC 3.5V ‒ 5 V / 9V.

Standby Mode Current
< 80mA.

Operating Current
150mA @ 3.5V (26 dBm Output,25°C).
110mA @ 3.5V (18 dBm Output,25°C).

Operating Temperature
– 20 °C – + 70 °C

Storage Temperature
– 20 °C – + 85 °C

Operating Humidity
< 95% (+ 25 °C)

Air Interface Protocol
EPC global UHF Class 1 Gen 2 / ISO 18000-6C

Spectrum Range
902Mhz ‒ 928Mhz, 865MHz ‒ 868MHz (Optional)

Supported Regions
US, Canada and other regions following U.S. FCC
Europe and other regions following ETSI EN 302 208
China,Korea,Malaysia

Output Power
 18-26 dBm

Output Power Precision
+/- 1dB

Output Power Flatness
+/- 0.2dB

Receive Sensitivity
< -70dBm

Peak Inventory Speed
> 50 pcs/s

Tag Buffer Size
200 pcs @ 96 bit EPC

Tag RSSI
Supported

Antenna
DR-300U 2dbi ceramic antenna,Read range:80cm-200cm (Tested with Impinj E41b tag);

Host Communication
USB 2.0, RS-232, Wiegand 26, Wiegand 34

Baud Rate
115200 bps ( default and recommended), 38400 bps

Cooling
Air cooling

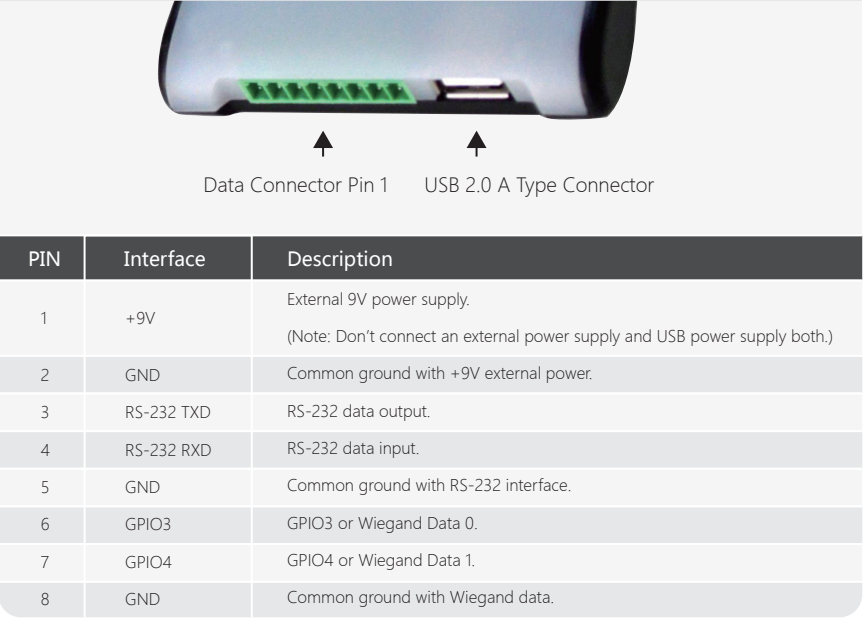

PIN Assignments

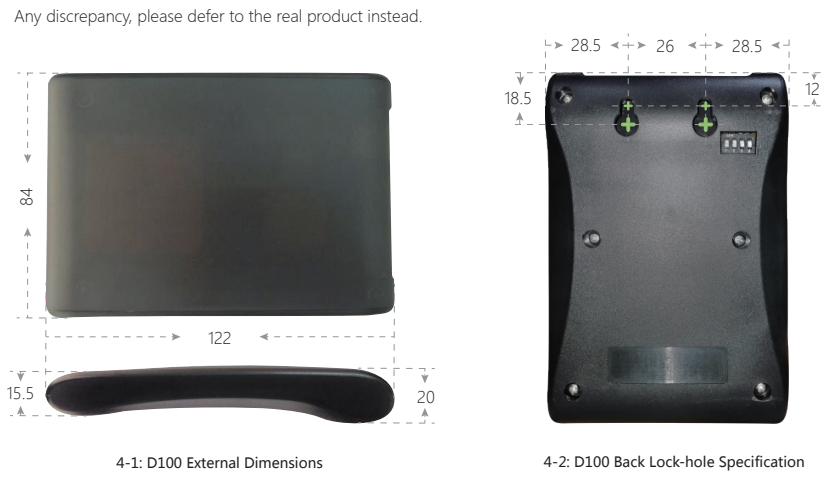

Structure Dimensions

Application Area
