DTB-ET25 Wet Inlay
Air interface protocol
EPC Global Class1 Gen2 ISO 18000-6C
Operational frequency
(US Standard) 902-928 MHz

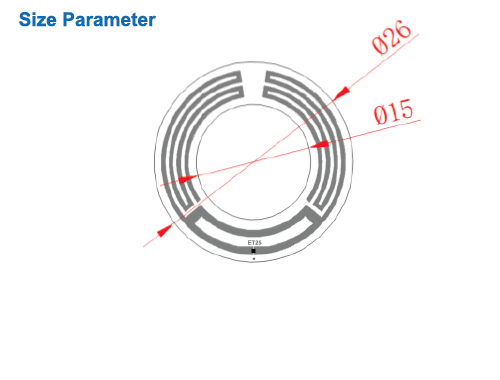

Tag dimensions
Φ26mm
Mechanical Parameters
Base Material
PET
Liner Material
Glassine

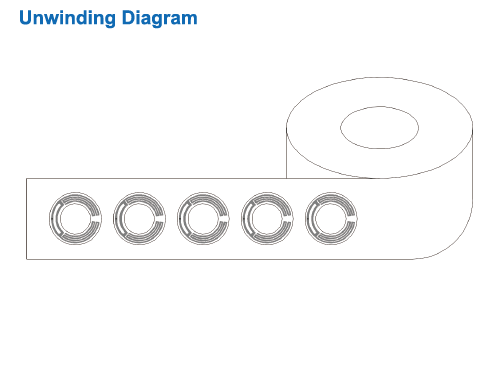

Quantity
2500 PCS / Roll
Reel Inner Diameter
76.2 mm
Tag Dimensions
Φ26mm
Electrical Parameters
Air Interface Protocol
EPC Global Class1 Gen2 ISO 18000-6C
Frequency
(US Standard) 902-928 MHz
IC Type
Impinj M730
Memory
EPC 128 bits;TID 96 bits;User Memory:No
IC Life
100,000 Times
Data Retention
10 Years
Application Surface
Non Metal Surface

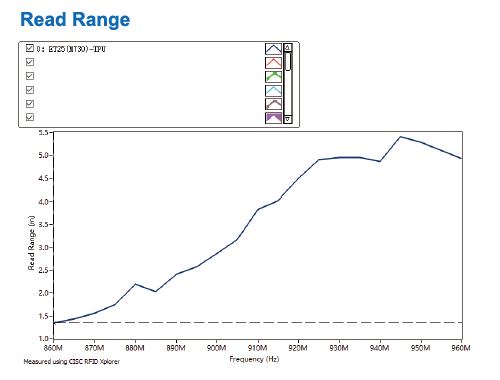

Reading Range
About 4.3 m(US Standard, Handheld 1W)
Other Parameters
Operating Temperature
-20°C~80°C
Storage Temperature
20°C~30°C
Storage Humidity
20~90 % Relative Humidity
Shelf Life
20°C~30°C,40~60% Relate Humidity. More than 2 Years.
Application Area
Goods Certified
The advantage of RFID anti-counterfeiting technology is that each tag has a globally unique ID number - UID. The UID is burned into the ROM…
