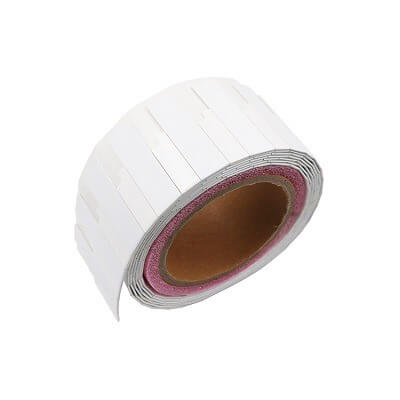

F5020 Flexible Anti-metal Tag
Air interface protocol
EPC Global Class1 Gen2 ISO 18000-6C
Operational frequency
US 902-928MH
Tag dimensions
50*20*1.2mm / 1.96” * 0.78” * 0.04”
Mechanical Specification
Surface material
Bright white PET
Backing paper
Glassine paper
Pitch on reel
25mm / 0.98″
Reel core inner diameter
76.2mm / 3″
Tag dimensions
50*20*1.2mm / 1.96” * 0.78” * 0.04”
Electrical Specification
Air interface protocol
EPC Global Class1 Gen2
ISO 18000-6C
Operational frequency
US 902-928MHz
IC type
Impinj M730
Memory configuration
EPC 128 bits, Unique TID 96 bits,User Memory 0 bits
Application medium
Metal surface
Reading range(Handheld reader)
More than 2.5m
Data storage
10 years
Read and write times
100,000 times
Environmental Resistance
Operating temperature
-20°C~70°C / -4°F~94°F
Ambient temperature
-30°C~100°C / -22°F~212°F
Customized options
Printing, coding, writing data
Certification
RoHS
Application Area
Logistics & Supply Chain
