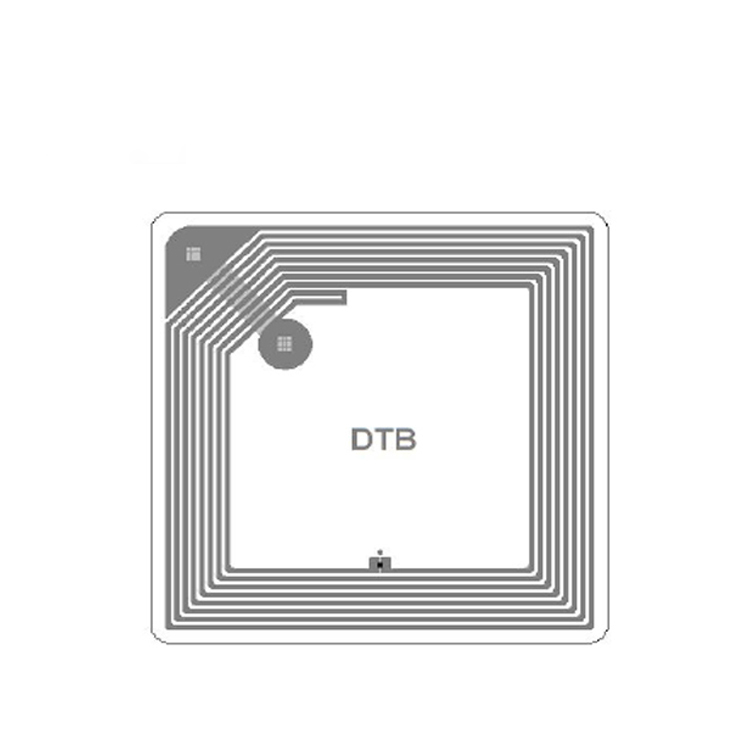

HB45 HF RFID Label

HB45 HF RFID Label

Air interface protocol
ISO/IEC 15693

Operational frequency
Global 13.56MHz

Tag dimensions
50 x 50 mm / 1.97” x 1.97”

Mechanical Specification

Substrate
PET

Face material
Coated Paper

Liner
Glassine Liner

Weight
About 2.0kg / reel

Delivery format
2500 pcs / reel

Pitch on reel
76.2 mm / 3”

Reel core inner diameter
58.964 mm / 2.32”

Tag dimensions
50 x 50 mm / 1.97” x 1.97”

Electrical Specification

Air interface protocol
ISO/IEC 15693

Operational frequency
13.56 MHZ

IC type
Icode SLIX

Memory configuration
1024 bits EEPROM Read/Write

READ range
10mm

Data Duration
5 year

Writing Cycle
100,000 times

Environmental Resistance

Operating temperature
-40°C~85°C / -40°F~185°F

Storage temperature
-20°C~50°C/ -4°F~122°F

Storage humidity
20~90% RH

Shelf life
At least 2 year at 20°C~30°C(68°F~86°F), 40~60% RH

Green rating
ROHS

Application Area
