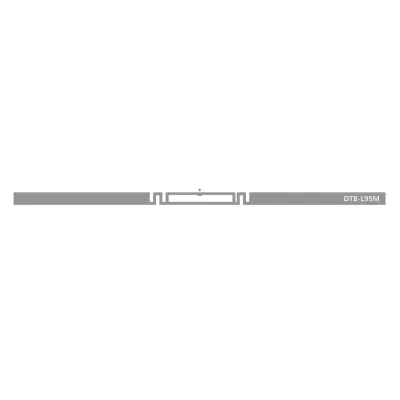

L95M Label
Air interface protocol
EPC Global Class1 Gen2 ISO 18000-6C
Operational frequency
Global 860-960MHz
Tag dimensions
104 * 5.5mm
Mechanical Parameters
Base Material
PET
Face Material
80g Coated Paper
Liner
Release Paper
Quantity
5000 PCS/Roll (Can Be Customized)
Reel Inner Diameter
76.2mm
Tag dimensions
104 * 5.5mm
Antenna Dimensions
95 * 3mm
Electrical Parameters
Air interface protocol
EPC Global Class1 Gen2
ISO 18000-6C
Operational frequency
Global 860-960MHz
IC type
Impinj M730
Memory configuration
EPC 128 bits, TID 96 bits; User Memory: No
IC Life
100,000 Times
Data Retention
10 Years
Application Surface
No Metal Surface
Reading Range
About 5m (US Standard, Handheld 1W)
Other Parameters
Operating temperature
-20°C~80°C
Storage Temperature
20°C~30°C
Storage Humidity
20~90 % Relative Humidity
Shelf Life
20°C~30°C,40~60% Relate Humidity, More than 2 Years;
