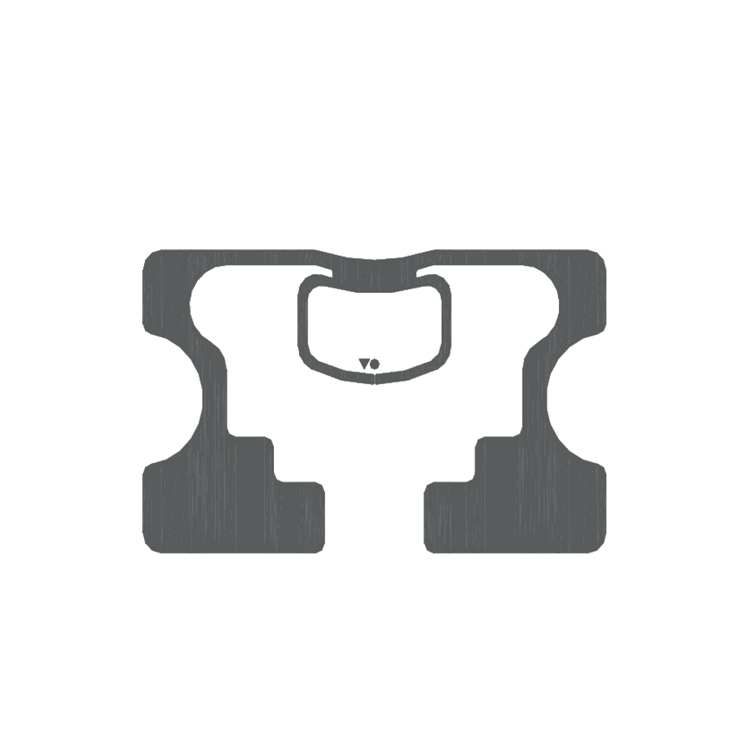

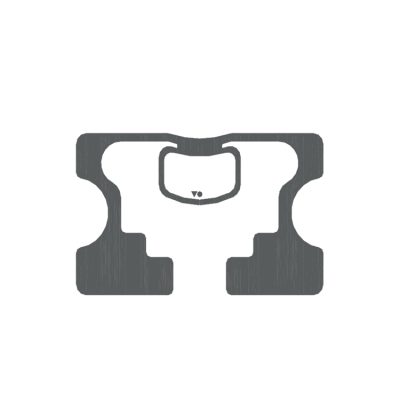

DTB-M50 UHF RFID Inlay
Air interface protocol
EPC Global Class1 Gen2 ISO 18000-6C
Operational frequency
Global 860-960MHz
Tag dimensions
50x30mm / 1.97”x1.18”
Mechanical Specification
Substrate
PET
Weight
0.25g / pc
Delivery format
6500 pcs on reel
Pitch on reel
40mm / 1.57”
Reel core inner diameter
153.42mm / 6.04”
Tag dimensions
50x30mm / 1.97”x1.18”
Electrical Specification
Device type
Class 1 Generation 2 passive UHF RFID transponder
Air interface protocol
EPC Global Class1 Gen2 ISO 18000-6C
Operational frequency
Global 860-960MHz
IC type
Impinj Monza 730
Memory configuration
EPC 128 bits; Unique TID 48 bits; User Memory 0 bits
Read range
Up to 13m
Environmental Resistance
Operating temperature
-20°C～80°C / -4°F～176°F
Ambient temperature
-20°C～80°C / -4°F～176°F
Storage condition
2 year at +20°C / 50％ RH
Expected lifetime
2 years in normal operating conditions
Application Area
Logistics & Supply Chain
RFID increases visibility of processes in the areas of logistics and supply chain management. This real-time updated information help us maximize efficiency and reduce operating…
Retail & Apparel
In the field of clothing and footwear retailing, the use of RFID can increase the inventory accuracy rate to 99%, creating a perfect shopping experience…
