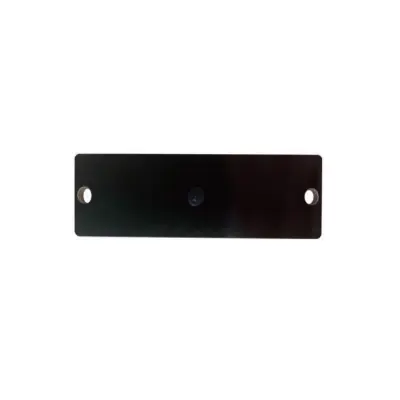

PCBD2208UA PCB Anti-metal Tag
Air interface protocol
EPC Global Class1 Gen2 ISO 18000-6C
Operational frequency
US 902-928MH
Tag dimensions
22*8mm / 0.86” * 0.31”
Mechanical Specification
Material
FR4(PCB)
Weight
About 1.5g / Piece
Thickness
3 mm (Excluding Chip Bumps)
3.8 mm (Including Chip Bumps）
Color
Black
Installation Method
Adhesive, Screws
Tag dimensions
22*8mm / 0.86” * 0.31”
Electrical Specification
Air interface protocol
EPC Global Class1 Gen2
ISO 18000-6C
Operational frequency
US 902-928MHz
IC type
NXP UCODE 8
Memory configuration
EPC 128 bits, TID 96 bits, User Memory: No
IC Life
100,000 Times
Data Retention
10 Years
Application Surface
Metal Surface
Reading Range
About 1.5m (US Standard, Handheld 1W)
Environmental Resistance
Operating temperature
-20°C~80°C
Ambient temperature
-30°C~120°C
Sealing Level
IP68
Certification
RoHS
