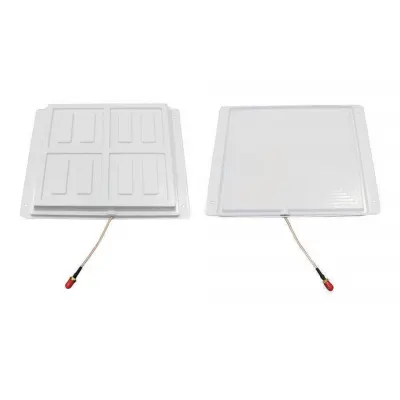

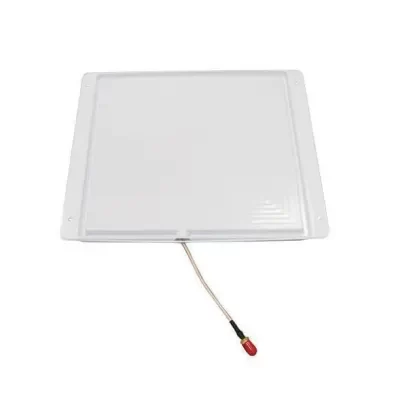

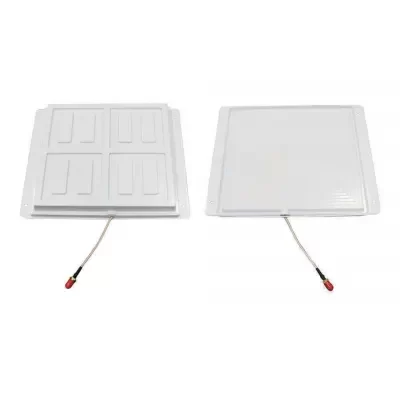

DTB-RA08C UHF Reader Antenna

DTB-RA08C UHF Reader Antenna

Gain
8 dBic

Polarization
Circular Polarization

Frequency Range
860-960 MHz

Electrical Indicators

Frequency Range
860~960MHz

Gain
8dBi

Plane Half Power Beamwidth
Hor:80° Ver:65°

Polarization Mode
Circular Polarization

VSWR
≤1.4

Front-to-Back Ratio
≥20

Impedance
50Ω

Maximum Input Power
100W

Lighting Protection
DC Ground

Connector Type
SMA Seat

Mechanical Indicator

Antenna Size
236 * 210 * 20 mm

Antenna Weight
0.18kg

Package Size
240 * 210 * 40mm

Material
PCB

Color
White

Operating Temperature
-20~60℃

Install

Screw, Glue

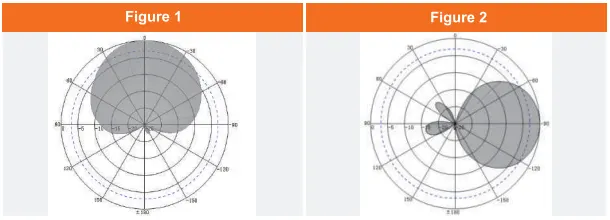

Antenna Magnetic Field
