DTB-UR01D RFID UHF All-In-One Machine

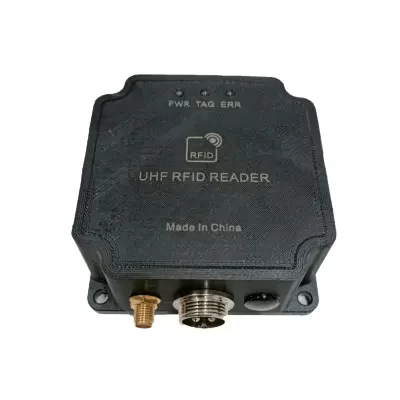

DTB-UR01D-main

DTB-UR01D RFID UHF All-In-One Machine

Weight
260 g

Physical Size
80 * 80 * 30 mm(L * W * H)

GET A QUOTE / DATASHEET

Product Features

· Built-in Domestic UHF Chip Module

· Rich Interface: TCP/IP, RS-232

· Antenna Connection Detection Function

· Unique Anti – Collision Algorithm

· The Shell is Made of Fireproof ABS+PC Material

Product Information

Model
DTB-UR01D

Weight
260 g

Tag Protocol

Supporting Agreement
EPC Global C1Gen 2(ISO 18000-6C)

RFlD Derformance

Antenna Gain
3dBi

Polarization Mode
Circular Polarization

Receiver Sensitivity
-70dBm

Output Power
0-30dBm, Adjustable in 1dB Step

Front-to-Back Ratio
≥25

Support Area
FCC 902-928 MHz(USA)
CN 920-925MHz(China)
865-868MHz(Europe)

Data/Control Interface

RFID Interface
Can connect an external antenna, SMA femaleconnector [only supported by YRF845D]

Communication Signal
RS-485, TCP/IP (Option), RS-232 (Option)

API Support
C#(.NET), C++(VC)JAVA

Human-Machine Interface
Buzzer: sound prompt when power is on; prompt whentag is read (configurable)PWR: power light; TAG: always on when tag is read,flashing when tag is being read;ERR: fault light

Structure Installation

Physical Size
80 * 80 * 30 mm(L * W * H)

Antenna Cover Material
ASA UV and Flame Retardant

Antenna Cover Color
Black

Pole Diameter
Ф 5 mm

Power supply

DC Power Supply
DC 12-24V 1.5A

Maximum Working Current
0.8A(30dBm) 0.95A (31dBm)

Stand-By Current
0.13A

Lightning Protection
DC Grounding

Working Environment

Standard
FCC 47 CFR Ch.1 Part 15

Operating Temperature
-30°C~+70°C

Storage Temperature
-40°C~+85°C

Working Humidity
5%~95%RH， No Gel

Protection Level
IP53

Fall
Anti 0.8 m Drop

Anti -Vibration
Frequency Range is 5-100Hz, Duration is 30 Min, Acceleration is 4.9m/s?

Anti -impact
Under the Maximum Acceleration of 30m/s² in Three Directions,0.3mm, 50Hz, Duration for 2 min

Anti-Static
Contact Discharge ± 4KV, Air Discharge ± 8kV

Electric Rapid Transient Pulse Group
The Tolerance Voltage of The Power Cord is 1KV
The Tolerance Voltage of The Signal Line is 0.5KV

Radiation Electromagnetic Field Resistance degree
Field Strong 3V/m, Frequency Range 80 ~ 1000MHz

Anti-interference
Power line:
Live Wire to Neutral Line Tolerance Pulse Voltage 1KV
Live Wire to Ground Line Resistance Pulse Voltage 2KV
Neutral Line to Ground Line Resistance Pulse Voltage 2KV
Signal Line:
Resistant Pulse Voltage 1KV

Architecture

RFID Processor
Impinj R2000 chip

Reading Tag Distance

Maximum Tag Reading Rate
2003 tags/second

Furthest Reading Tag Distance Current
13 m

Furthest Write Tag Distance
6 m

Application Area
