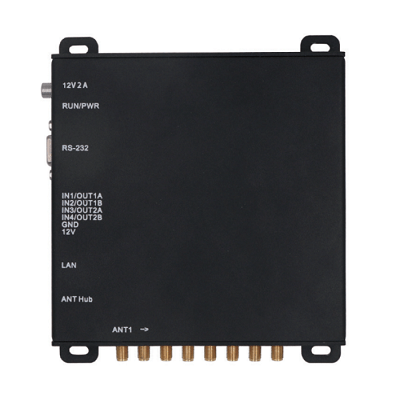

QY-UR08B UHF Eight Channel Reader
RFID Supporting Agreement
EPC global C1Gen 2(ISO 18000-6C)
RFID Processor
Impinj R2000
Furthest Reading Tag Distance
10m @6dBi Antenna(36dBm EIRP)
Product Features
- Using lmpinj R2000 Uhf Chip
- Abundant Solution Interfaces: TCP/IP, RS-232, And Other Interfaces
- Antenna Connection Detection Function
- Unique Anti-Collision Algorithm
- Industrial Grade Design, High Reliability
Product Information
Model
H20U
Weight
480
Size
167mm * 144 mm * 25mm(L*W*H)
Standards Supported
RFID Supporting Agreement
EPC global C1Gen 2(ISO 18000-6C)
Tag Protocol
RF Connector
8 Way SMA RF Connector
Receiver Sensitivity
-80dBm
Port Isolation
>40dBc
Output Power
9-32dBm，Adjustable in 1dB Step(Customized as 1-32dBm)
Support Area
FCC 902-928 MHZ(USA)
CN 920-925MHz(China)
KCC 917-920.8MHz(Korea)
ACMA 920-926MHz(Australia)
860-960MHz(Customizable)
Data/Control Interface
Wired Interface
Serial Port: 3.3V Logic Level, Potter Rate 9600-460800bps. Default 115200bps, TCP/IP
Wireless Interface
WIFI Supports 802.11b (Option),4G(Option)
GPIO Interface
4 Lights Electric Input/2 Input+1 Output/Two -Oay Output
API Support
Android, JAVA, C#(.NET), C++(VC)
Power Supply
DC Power Supply
12V
Maximum Working Current
0.9A(30dBm)1.0A(32dBm)
Stand-By Current
0.24A
Working Environment
Standard
FCC 47 CFR Ch.1 Part 15
Operating Temperature
-30°C~+70°C
Storage Temperature
-40°C~+85°C
Working Humidity
5%~95%RH， No Gel
Fall
Anti 1 m Drop
Anti -Vibration
Frequency Range is 5-100Hz, Duration is 30 Min, acceleration is 4.9m/s2
Anti -Impact
under the maximum acceleration of 30m/s2 in three directions0.3mm, 50Hz, duration for 2 min
Anti-Static
Contact discharge 4KV, air discharge + 8kV
Electric Rapid Transient Pulse Group
The Tolerance Voltage of The Power Cord is 1KV
The Tolerance Voltage of The Signal Line is 0.5KV
Radiation Electromagnetic Field Resistance degree
Field Strong 3V/m, Frequency Range 80 ~1000MHz
Anti -Interference
Power line: Live Wire to Neutral Line Tolerance Pulse Voltage 1KV.
Live Wire to Ground Line Resistance Pulse Voltage 2KV.
Neutral Line to Ground Line Resistance Pulse Voltage 2KV.
Signal Line: Resistant Pulse Voltage 1KV.
RFID Chip
RFID Processor
Impinj R2000
Operating Environment
Maximum Tag Read Rate
400 Sheets/Sec
Furthest Reading Tag Distance
10m @6dBi Antenna(36dBm EIRP)
Furthest Write Tag Distance
7m @6dBi Antenna(36dBm EIRP)
Application Area
Logistics & Supply Chain
Retail & Apparel
Library Management
Event Management
