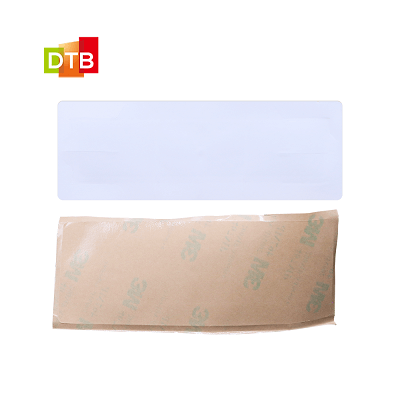

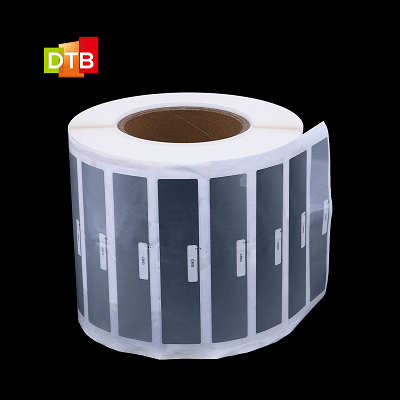

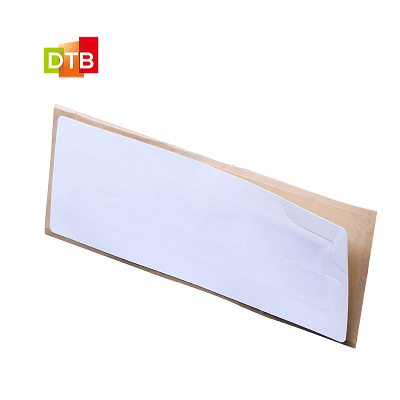

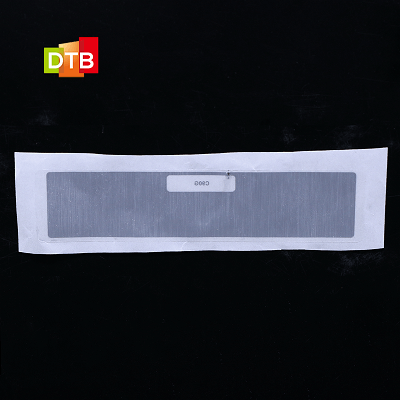

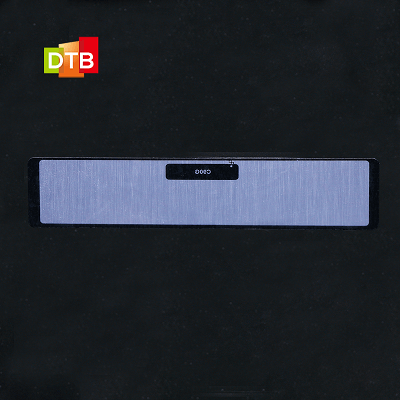

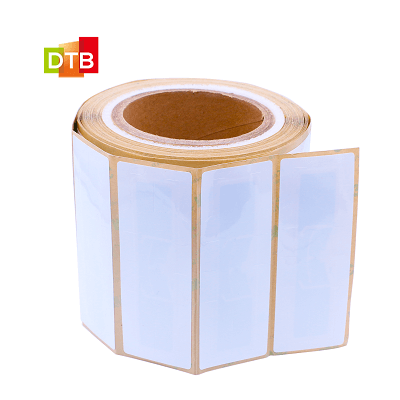

RFID UHF Car Windshield Tag Wet Inlay
Air interface protocol
EPC Global Class1 Gen2 ISO18000-6C
Operational frequency
Global 860-960 MHz
Tag dimensions
99 * 12mm
Intelligent network connection has become an important trend in the development of the automotive industry. With it, the Internet of Vehicles is becoming more and more popular, and it has attracted great attention from all parties.
With the development of the Internet of Vehicles and the continuous improvement of RFID and sensing technologies, the application of electronic tags in automobiles will inevitably become more and more extensive.
The electronic label of the windshield can be attached on the car windshield.
RFID custom Uhf Windshield Sticker Labeloffer a more accurate and secure way to allow access into various locations like a gated community, company/corporate secured parking, or even a car wash. The inlay utilizes passive technology and is encapsulated between thin layers of polypropylene adding human-readable printing to one side and a windshield-compatible adhesive to the other.
Product Description
Product Name
RFID UHF Car Windshield Tag Wet Inlay
Model number
Windshield Tag DTB-C90G
Place of Origin
Shenzhen, Guangdong, China
Tag Size
96*22mm or customized size
Antenna size
90*20mm
Chip
Impinj Monza 4QT or other chip available
Chip Memory
EPC: 128 bits
User: 512 bits
Material
1) Adhesive film
2) Aluminum etched Antenna
3) PET substrate(transparency or white color, Single or double sided)
Weight
About 1.2g
Frequency
860~960MHz
Protocol
IEC/ISO 18000-6C EPC Class 1 Gen 2
Operating mode
Read&Write
Reading distance
10-15 meters(According to different environments and readers)
Life
≥ 10 years / ≥100,000times
Feature
1. Anti-infrared rays&Anti-UV ray (sunlight)
2. Anti-high temperature
3. Waterproof
4. Strong adhesive
5. Can be customized printing
6. Can add anti-tearing line (After peeling off the label from the windshield pasting position, the label is damaged after peeling off and cannot be reused).
Printing Option
Logo, Serial number, barcode, QR, Password etc
Application
Parking Management, Car identification, VehicleTracking System
Industry-specific Attributes
Special Features
/
Communication Interface
RFID, UHF
Other
Attribute-list
Supply Ability
2000000 Piece/Pieces per Month
Package
Lead Time
