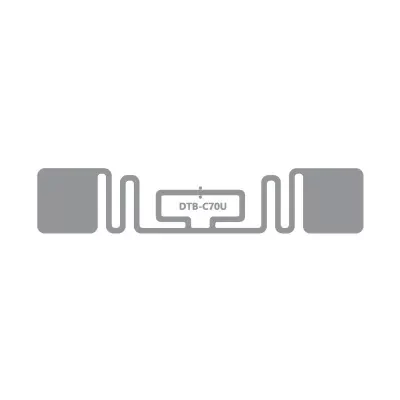

C70U UHF RFID Label
Air interface protocol
EPC Global Class1 Gen2 ISO 18000-6C
Operational frequency
Global 860-960MHz
Tag dimensions
73 * 17mm
Mechanical Specification
Base Material
PET
Face material
80g Coated Paper
Liner
Glassine
Quantity
2500PCS/Roll(Can Be Customized)
Tag Pitch
40.005 mm
Reel Inner Diameter
76.2 mm
Tag dimensions
73*17 mm
Antenna Dimensions
70*14 mm
Electrical Specification
Air interface protocol
EPC Global Class1 Gen2 ISO 18000-6C
Operational frequency
Global 860-960MHz
IC type
NXP UCODE 9xe
Memory
EPC 96 bits; TID 96 bits; User Memory: No
IC Life
100,000 Times
Data Retention
10 Years
Application Surface
Non Metal Surface
Read range
About 10 m(US Standard, Handheld 1W)
Other Parameters
Operating temperature
-20°C～80°C
Storage Temperature
20°C～30°C
Storage Humidity
20~90% Relative Humidity
Shelf Life
20°C~30°C,40~60% Relative Humidity, More Than 2 Years
Application Area
