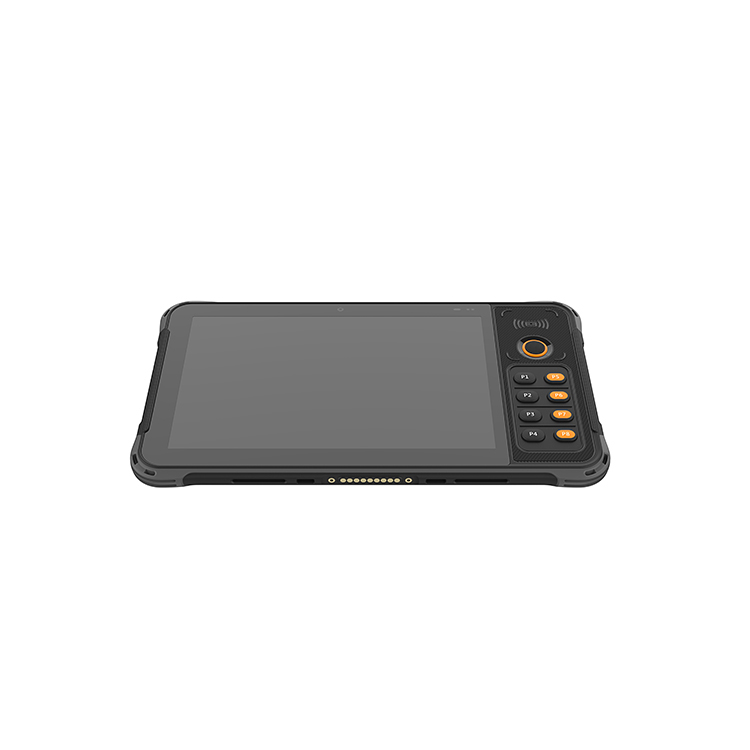

DTB-P8100 RFID PAD

DTB-P8100 RFID PAD

CPU
Octa-core Cortex-A53,1.8 GHz

Memory

4GB RAM / 64GB ROM

PERFORMANCE CHARACTERISTICS

O.S.
Android 9.0

CPU
Octa-core Cortex-A53,1.8 GHz

Memory
4GB RAM / 64GB ROM

Extended memory
Micro-SD card,Up to 256 GB

Basic specifications

Dimensions
253.8*146*16.5mm(10.0*5.7*0.6 inch)

Weight
728.5g(25.7oz.)

Display
8 inch display,1920×1200(FHD)
8 inch display,1280×800(HD)(optional)
8 inch electromagnetic display ,1920×1200(FHD)
(optional)

Touch panel
Capacitive:Multiple touch screen,support gloves,
wet finger and passive stylus.
Electromagnetic (optional):Multiple touch screen,
support
gloves, wet finger and passive stylus signature

Main battery
Capacity:3.8V8400mAh
Battery life: 8-10h(depends on environment and use case)

Charging time
<4 hours(with QC3.0 adapter)(room Temperature)

Buttons
Vol+/-, power key, scan key, P1~P8 function key
Vol+/-, power key, scan key (Fingerprint model)

Sensors
Light sensor, accelerator sensor, geomagnetic
sensor, gyro sensor

Audio
Dual-speakers, Dual microphones, audio jack

Fingerprint
FBI/PIV certified optical fingerprint module

Slots
Micro SD/TFx1 、Nano- SIMx2,PSAMx1

I/O
USB type C, POGO pin

Environment

Operating Temperature
– 20°C ~ 60°C (-4°F~140°F)

Storage Temperature
– 40°C ~ 70°C (-40°F~158°F)

Humidity
5%RH ~ 95%RH(non condensing)

Drop Specification
Device can withstand the impact of multiple 1.5m drops to smooth cement floor

Tumble
400 1.0m tumbles

Thermal Shock
– 40°C ~ 70°C (-40°F~158°F ) rapid transition

Sealing
IP67

ESD
Air ±15KV,Contact ±8KV

DATA CAPTURE

Camera
Front 5M Pixels,Rear 13M Pixels,Flashlight

Scanning
1D/2D barcode reader
Can read all international standards1D/2D barcode;
Can read barcode displayed on screens and colored
barcode

NFC
ISO 14443 Type A and B; FeliCa/Mifare and ISO
15693 cards;
Reader mode, P2P mode, Card Emulation mode Apple
Enhanced Contactless Polling(ECP)

WIRELESS WAN DATA

4G
TD-LTE(B34/B38/B39/B40/B41)
FDD-LTE(B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B19/
B20/B25/B26/B28A/B28B/B66)

3G
WCDMA(B1/B2/B4/B5/B8)
TD-SCDMA(B34/B39)
CDMA2000 1x EV-DO Rev.A BC0 (800MHz)

2G
CDMA1x
GSM/EDGE/GPRS(850/900/1800/1900)

GPS
GPS、A-GPS、BEIDOU、GLONASS、Galileo
High-precision RTK(Precision0.01m)(Optional)

WIRELESS LAN

WiFi
IEEE 802.11a/b/g/n/ac/d/e/h/i/k/r/v/w

Working Channels
2.4G:CH1~CH13(Depends on Country/Region)
5G :36/38/40/42/44/46/48/52/56/60/64/100/104/108/
112/116/120/124/128/132/136/140/149/153/157/161/
165(Depends on Country/Region)

Security
EAP-TLS,EAP-TTLS,PEAP-MSCHAPv2,
PEAP-TLS,PEAP-GTC,PWD,SIM,AKA WEP ,
WPA/WPA2-PSK,WAPI certificate,WAPI-PSK

Roaming
Support PMKID caching, 802.11r, OKC

WIRELESS PAN

Bluetooth
BT4.2+BR/EDR+BLE

OPTIONAL ACCESSORIES

Single cradle (with battery), Ethernet cradle, wrist strap, protective cover, wall mount stand.
