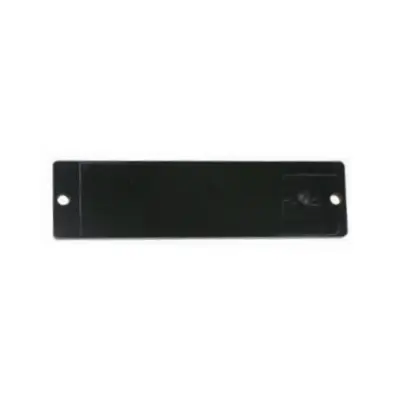

PCB6020UA PCB Anti-Metal Tag
Air interface protocol
EPC Global Class1 Gen2 ISO 18000-6C
Operational frequency
US 902-928MH
Tag dimensions
60 * 20 * 3mm
Mechanical Specification
Material
FR4(PCB)
Weight
About 2g / Piece
Thickness
3.0 mm ((Excluding Chip Bumps)
3.7 mm (Including Chip Bumps)
Color
Black(Can be customized)
Installation Method
Adhesive, Screws
Tag Dimensions
60 * 20 * 3mm
Electrical Specification
Air interface protocol
EPC Global Class1 Gen2
ISO 18000-6C
Operational frequency
US 902-928MHz
IC type
NXP UCODE 8
Memory configuration
EPC 128 bits, TID 96 bits; User Memory: No
IC Life
100,000 Times
Data Retention
10 Years
Application Surface
Metal Surface
Reading Range
About 3.5m (US Standard, Handheld 1W)
Environmental Resistance
Operating temperature
-20°C~80°C
Storage Temperature
-30°C~120°C
Sealing Level
IP68
Certification
RoHS
