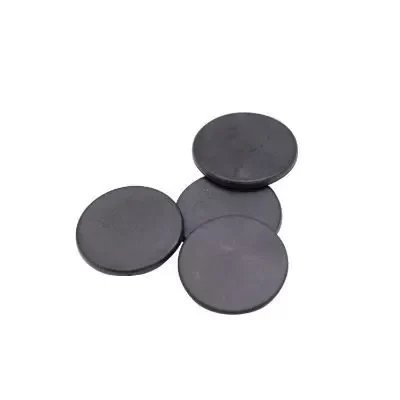

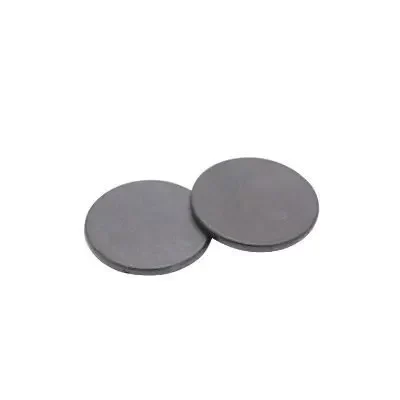

PPSD20 PPS Tag
Air interface protocol
EPC Global Class1 Gen2 ISO 18000-6C
Operational frequency
US 902-928MH
Tag dimensions
Φ20 * T2.6mm (Accuracy +- 0.2mm)
Mechanical Specification
Material
PPS
Weight
About 1.28g / Piece
Shell Color
Black
Installation Method
Sewing Method
Tag dimensions
Φ20 * T2.6mm (Accuracy +- 0.2mm)
Electrical Specification
Air interface protocol
EPC Global Class1 Gen2
ISO 18000-6C
Operational frequency
US 902-928MHz
IC type
NXP UCODE 8
Memory configuration
EPC 128 bits, TID 96 bits, User Memory: No
IC Life
100,000 Times
Data Retention
10 Years
Application Surface
No Metal Surface
Reading Range
1-2m (US Standard, Handheld 1W)
Environmental Resistance
Operating temperature
-20°C~80°C
Ambient temperature
-30°C~120°C
Sealing Level
IP67
Certification
RoHS
Application Area
Logistics & Supply Chain
RFID increases visibility of processes in the areas of logistics and supply chain management. This real-time updated information help us maximize efficiency and reduce operating…
Retail & Apparel
In the field of clothing and footwear retailing, the use of RFID can increase the inventory accuracy rate to 99%, creating a perfect shopping experience…
