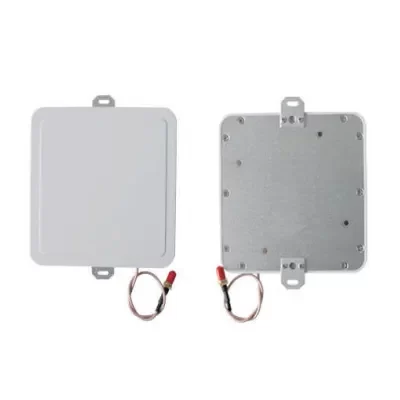

DTB-RA06B UHF Reader Antenna
Frequency Range
860~960MHz
Antenna Size
130 * 130 * 18.5 mm
Electrical Indicators
Frequency Range
860~960MHz
Gain
6dBi
Plane Half Power Beamwidth
Hor:105° Ver:95°
Polarization Mode
Circular Polarization
VSWR
≤1.4
Front-to-Back Ratio
≥20
Impedance
50Ω
Maximum Input Power
100W
Lighting Protection
DC Ground
Connector Type
SMA Seat
Mechanical Indicator
Antenna Size
130 * 130 * 18.5 mm
Antenna Weight
0.2 kg
Package Size
155 * 155 * 35 mm
Gross Weight
0.25 kg
Material
Aluminum
Color
White
Installation Method
Hanging Ear Installation
Waterproof Level
IP65
Operating Temperature
-20~60℃

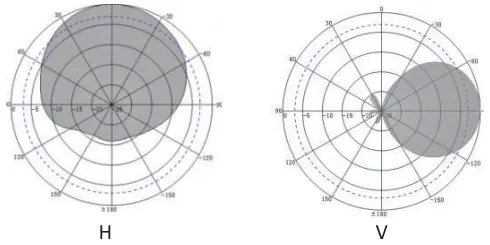

Wave Flap Diagram
Application Area
Retail & Apparel
In the field of clothing and footwear retailing, the use of RFID can increase the inventory accuracy rate to 99%, creating a perfect shopping experience…
Logistics & Supply Chain
RFID increases visibility of processes in the areas of logistics and supply chain management. This real-time updated information help us maximize efficiency and reduce operating…
Library Management
The use of RFID technology in the library can realize the visualization of book borrowing, returning, putting on shelves, and inventory, which greatly improves the…
Healthcare
Applying RFID to pharmaceutical products and testing reagents can help achieve more accurate tracking and verification of drugs and reagents throughout the supply chain.
Goods Certified
The advantage of RFID anti-counterfeiting technology is that each tag has a globally unique ID number - UID. The UID is burned into the ROM…
