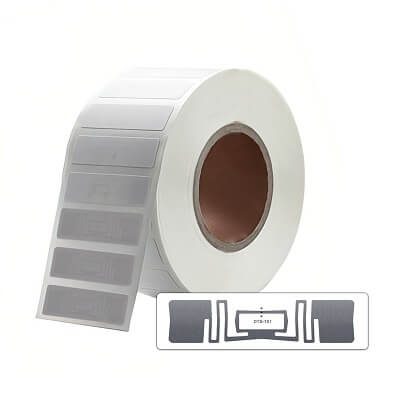

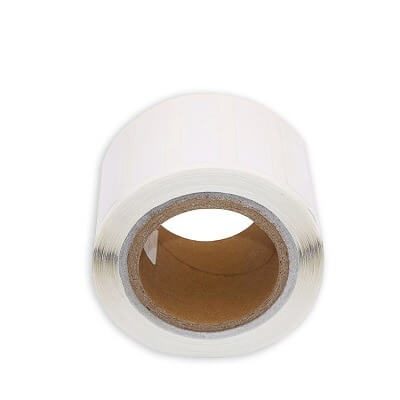

DTB-T01 UHF RFID Label

DTB-T01 UHF RFID Label

Air interface protocol
EPC Global Class1 Gen2 ISO 18000-6C

Operational frequency
Global 860-960MHz

Tag dimensions
73*20mm / 2.87”*0.78”

Mechanical Specification

Base Material
PET

Face Material
80g Coated Paper

Liner
Release Paper

Quantity
2500 PCS / Roll (Can Be Customized)

Tag Pitch
29.482 mm / 1.16″

Reel Inner Diameter
76.2 mm / 3″

Tag Dimensions
73 * 20 mm / 2.87″ * 0.78″

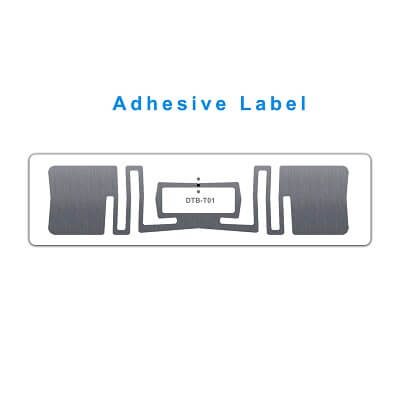

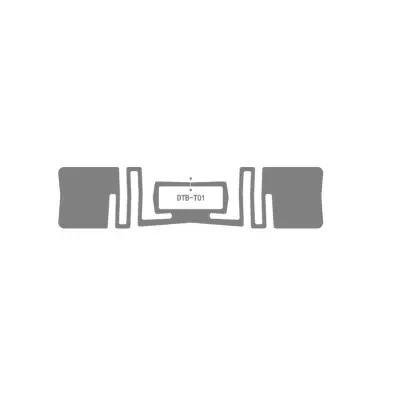

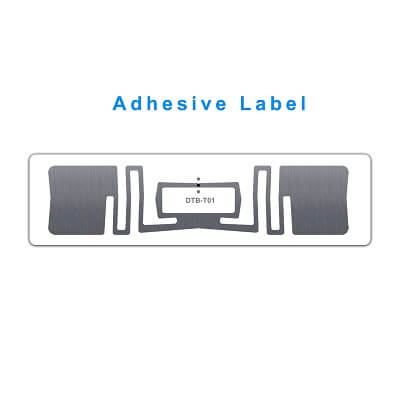

Antenna Dimensions
70* 16 mm / 2.75″ * 0.62″

Electrical Specification

Air Interface Protocol
EPC Global Class1 Gen2 1S018000-6C

Frequency
(US Standard) 902-928 MHz

IC Type
Impinj M730

Memory
EPC 128 bits;TID 48 bits; User Memory:No

IC Life
100,000 Times

Data Retention
10 Years

Application Surface
Non Metal Surface

Reading Range
About 12 m (US Standard, Handheld 1W)

Environmental Resistance

Operating temperature
-20°C-80°C

Storage Temperature
20°C-100°C

Storage Humidity
20-90 % Relative Humidity

Shelf Life
20°C-30°C, 40-60% Relative Humidity, More Than 2 Years

Application Area
