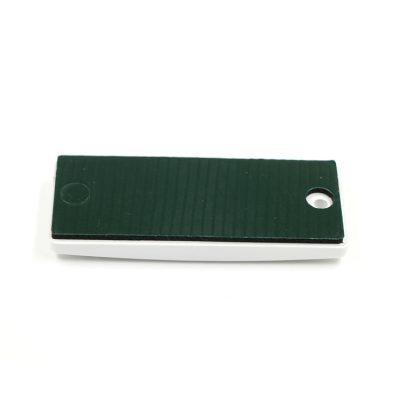

DTB-ABS7931 Anti-metal RFID Tag

DTB-ABS7931 Anti-meta RFIDl Tag

Air interface protocol
EPC Global Class1 Gen2 ISO 18000-6C

Operational frequency
US 902-928MH

Tag dimensions
79*31*10mm / 3.11” * 1.2” * 0.39”

Mechanical Specification

Substrate
PET

Shell material
ABS

Weight
About 13g / pc

Color
Off-white

Tag dimensions
79*31*10mm / 3.11”*1.2”*0.39”

Thickness
10mm (Hole size: Φ4mm)

Installation method
d Glue, screw

Electrical Specification

Device type
Class 1 Generation 2 passive
UHF RFID transponder

Air interface protocol
EPC Global Class1 Gen2
ISO 18000-6C

Operational frequency
US 902-928MHz, EU 865-868MHz

IC type
NXP UCODE 8

Memory configuration
EPC 128 bits, Unique TID 96 bits,User Memory 0 bits

Application medium
Metal surface

Reading range(Fixed reader)
More than 15m

Reading range(Handheld reader)
More than 15m

Data storage
10 years

Read and write times
100,000 times

Environmental Resistance

Operating temperature
-25°C~70°C / -13°F~158°F

Ambient temperature
-40°C~70°C / -40°F~158°F

Sealing
IP67

Certification
Reach, RoHS, CE

Application Area
