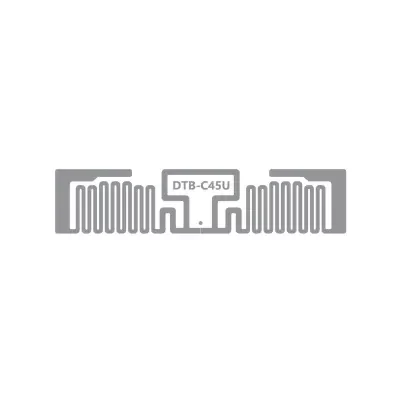

DTB-C45U Label
Reading Range
Up to 5 m
Tag Dimensions
48 × 14 mm
IC Type
NXP UCODE 9xe
Global Delivery
Factory Direct
ISO 9001 Certified
OEM & ODM
Free Samples
Expert Support
Mechanical Specification
Base Material
PET
Face material
80g Coated Paper
Liner
Release Paper
Quantity
2500PCS/Roll(Customizable)
Reel Inner Diameter
76.2 mm
Tag dimensions
48 × 14 mm
Antenna Dimensions
45 × 10 mm
Electrical Specification
Air interface protocol
EPC Global Class1 Gen2 ISO 18000-6C
Operational frequency
Global 860-960MHz
IC type
NXP UCODE 9xe
Memory
EPC 128 bits; TID 96 bits; User Memory: No
IC Life
100,000 Times
Data Retention
10 Years
Application Surface
Non Metal Surface
Read range
About 5 m(US Standard, Handheld 1W)
Other Parameters
Operating temperature
-20°C～80°C
Storage Temperature
20°C～30°C
Storage Humidity
20~90% Relative Humidity
Shelf Life
20°C~30°C,40~60% Relative Humidity, More Than 2 Years
Application Area
Retail & Apparel
In the field of clothing and footwear retailing, the use of RFID can increase the inventory accuracy rate to 99%, creating a perfect shopping experience…
Logistics & Supply Chain
RFID increases visibility of processes in the areas of logistics and supply chain management. This real-time updated information help us maximize efficiency and reduce operating…
