DTB-C66F Label
Reading Range
Up to 2 m
Tag Dimensions
70 × 24 mm
IC Type
FM13UF011X
Global Delivery
Factory Direct
ISO 9001 Certified
OEM & ODM
Free Samples
Expert Support
Mechanical Specification
Base Material
PET
Face Material
Bright White PET
Liner
Glassine
Quantity
2500PCS/Roll (Customizable)
Reel Inner Diameter
76.2 mm
Tag Size
70 × 24 mm

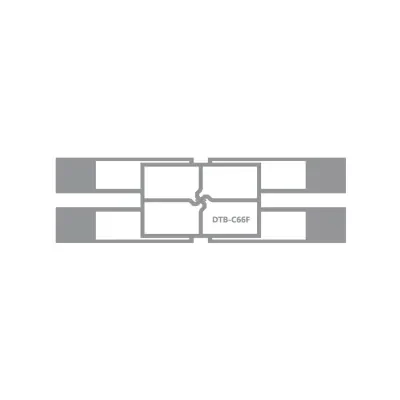

Antenna Size
66 × 19.5 mm
Electrical Specification
Air Interface Protocol
EPC Global Class1 Gen2 ISO 18000-6C
Frequency
Global 860-960MHz
IC Type
FM13UF011X
Memory
EPC128/528bits;TlD 96 bits;User:512 bits
IC Life
100,000 Times
Data Retention
10 Years
Application Surface
Non Metal Surface
Reading Range
About 2 m (US Standard, Handheld 1W)
Other Parameters
Other Parameters
-20℃ ~ 80℃
Storage Temperature
20℃ ~ 30℃
Storage Humidity
20~90 % Relative Humidity
Shelf Life
20°C~30°C,40~60% Relative Humidity More Than 2 Years
Others
Application Area
Retail & Apparel
In the field of clothing and footwear retailing, the use of RFID can increase the inventory accuracy rate to 99%, creating a perfect shopping experience…
Healthcare
Applying RFID to pharmaceutical products and testing reagents can help achieve more accurate tracking and verification of drugs and reagents throughout the supply chain.
