DTB-V90M RFID Label

DTB-V90M RFID Label

Reading Range
Up to 10 m

Tag Dimensions
96 × 22 mm

IC Type
Impinj M700 Series (Customizable)

Mechanical Parameters

Base Material
PET

Face Material
80g Coated Paper

Liner
Glassine Paper

Quantity
2500PCS/Roll (Can Be Customized)

Reel Inner Diameter
76.2 mm

Tag Size
96 × 22 mm

Antenna Size
90 × 20 mm

Electrical Parameters

Air Interface Protocol
EPC Global Class1 Gen2 ISO18000-6C

Frequency
Global 860-960 MHZ

IC Type
Impinj M700 Series (Customizable)

IC Life
100,000 Times

Data Retention
10 Years

Application Surface
Non Metal Surface

Reading Range
≥10 m (US Standard, Handheld 1W)

Other Parameters

Operating Temperature
-20°C~80°C

Storage Temperature
20°C~30°C

Storage Humidity
20-90% Relative Humidity

Shelf Life
20°C~30°C, 40~60% Relative Humidity, More Than 2 Years

Chip Parameter

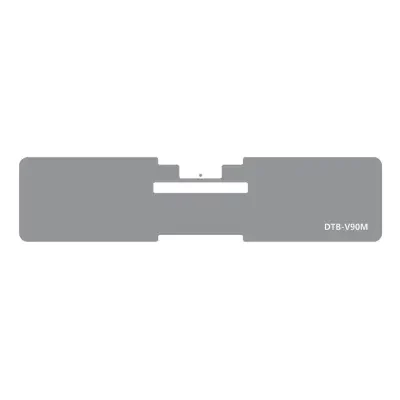

Diagram
