DTB-H20U Lite RFID Handheld Terminal

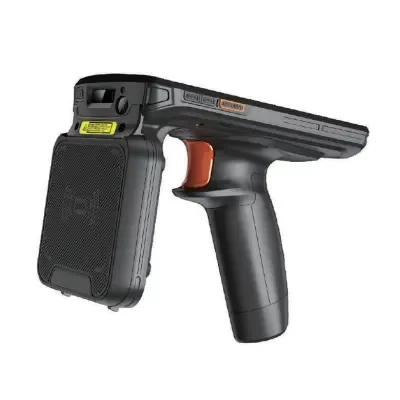

DTB-H20U Lite-main

DTB-H20U Lite RFID Handheld Terminal

Chip options
Octa-core 2.45GHz

Memory

RAM:4GB

ROM:64GB

GET A QUOTE / DATASHEET

Performance Parameter

Model
DTB-H20U Lite

O.S.
Android 13.0

CPU
Octa Core, 2.45 GHz

Memory
RAM: 4GB, ROM: 64GB

Extended Memory
Micro-SD card, Up to 256GB

Basic Specifications

Dimensions
132 * 162.6 * 78 mm

Weight
498 g

Display
5.7 Inch Display (720 * 1440)

Touch Screen
Supports multi-touch, glove touch, water operation and passivepen signature, Corning glass cover

Main battery
3.85V 6500mAh Rechargeable Lithium Battery

Charging time
Less Than 5 Hours

Audio
1.3W Speaker, Microphone (supports noise reduction), Earpiece

Buttons
Volume +,-buttons, power button, 1 custom button, 2 scan buttons

Camera
5MP front camera, 13MP top camera, supports flash

Sensor
Distance, light sensitivity, acceleration, geomagnetism, gyroscope

Scanner
Professional scanning head, supports scanningMainstream 1D and 2D codes, supports screen scanning

Card slot type
Nano-SlM * 2, Micro SD * 1, supports up to 256GB expansion

Environment

WWAN
Dual Card Dual Standby, 4G, 3G, 2G Full Netcom

Bluetooth
BT5.0+BR/EDR+BLE

Positioning
GPS, A-GPS, BeiDou, GLONASS, Galileo

WIFI
2.4G/5G dual-band, lEEE
802.11a/b/g/n/ac/d/e/h/i/k/r/v/w protocols
Fast roaming: 802.11r/OKC/PMKiD caching
802.11ax ready

Operating Temp
-20℃~60℃

Storage Temp
-40℃~70℃

Humidity
5%RH~95%RH(No Condensation)

Drop Specification
Multiple 1.2m Drops to Concrete at Room Temperature

Sealing
IP67

ESD
+/-1 5kv Air; +/-8kv Contact

Camera

Front Camera
Fixed Focus, 1080p Video Recording; 500W Pixels

Top Camera
Support Flash Light (700mAh, Support Flashlight Function)Autofocus, AutomaticFocusing,1080p Video Recording; 1300W Pixels

Scan Engine

Scan Angels Tilt
360°

Scan Angels Pitch
±60°

Scan Angels Skew
±60°



Barcodes Support
Linear: Codabar 11,Code 128,Code 2 of 5,Code 39,Code 93and 93i,EAN/JAN-13,EAN/JAN 8,IATA Code 2 of 5Interleaved 2 of 5,Matrix 2 of 5,MSl,GS1 Databar,UPC-AUPC E,UPC-AVEAN-13 with Extended Coupon Code,CouponGS1 Code 32(PARAF),EAN-UCC Emulation,GS1 Data Bar.
2D Stacked: Codablock A,Codablock F,PDF417,MicroPDF417.
2D Matrix: Aztec Code,Data Matrix,MaxiCode,QR Code,Chinese Sensible(Han Xin),Grid Matrix,Dot Code.
Postal: Australian Post,British Post.Canadian Post.China Post.Japanese Post,Korea Post.Netherlands Post.Planet Code.Postnet

RFID(NFC)

RFID
Read/Write(HF)

Frequency Range
13.56MHZ

Standards supported
Support ISO15693、ISO14443A/B 、Mifare、Felica

Support Mode
Card Emulation 、Peer-to-Peer 、 Reader via Host and UICC

RFID(UHF)

RFID
Read/Write(UHF)

Frequency Range
902~928MHz & 865~868MHz(Can Be Adjustable)

Standards supported
ISO18000-6C(Standard EPC C1G2)

Nominal read range
Up to 15 m (Depends on RFlD Tags, Adjustable)

GPS Positioning

Support Mode
GPS, A-GPS, BeiDou, GLONASS, Galileo

Frequency
GPS(L1 1.575GHz C/A code), BeiDou(B1 1.56GHz), GLONASS(L11.602GHz), Galileo(E1 1.589 GHZ/E2 1.561 GHz)

Cold Start Time
Less Than 40s

Max Channel
31 Channel

Sensitivity
-130dB(SNR Value 40dBHz)

Precision
5-10 Meters (Open Space)

Wireless LAN

Protocol
IEEE 802.11a/b/g/n/ac/d/e/h/i/k/r/v/w Protocol (2.4G15GDual Band WIFl), IEEE 802.11ax ready

Frequency
2.4G、5G

Working Channels
CH1~CH13,CH34~CH140,CH149~CH165(Depends on Area)

Security and Encryption
WEP(40 or 104 bit); WPAPA2 Personal (TKlP, and AES); WPA3 Personal (SAE); WPAPA2 Enterprise (TKlP and AES); WPA3 Enterprise 192-bit mode(GCMP-256)-EAP-TLS; Enhanced Open (OWE)

Fast roaming
PMKID Caching; Cisco CCKM; 802.11r(Over-the-Air); OKC, Can Set WiFi Roaming Threshold

Wireless WAN

WAN Mode
Dual-SlM,Dual-Standby

Worldwide Radio Frequency Band
TD-LTE(B34/B38/B39/B40/B41);
FDD-LTE(B1/B2/B3/B4/B5/ B7/B8/B12/B13/B17/B20/B28AB28B);
WCDMA(B1/B2/B4/B5/B8);
TD-SCDMA(B34/B39);
CDMA2000 1x EV-DO ReV A BCO (800MHz);
CDMA1x;
GSM/EDGE/GPRS(85019001180011900)

Bluetooth

Support Mode
BT5.0+BR/EDR+BLE

Connection Distance
More than 10 m

Accessories Type

Standard Accessories
Battery*1, data cable*1, power adapter*1

Optional Accessory
Single Standing Charger , Protective Film
