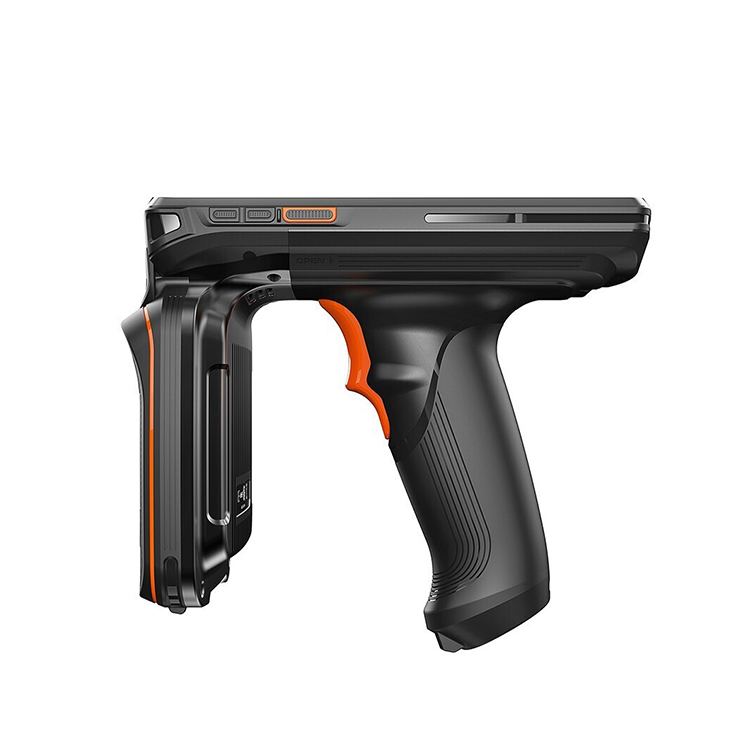

DTB-H20U UHF Handheld RFID Reader

DTB-H20U UHF Handheld RFID Reader

Chip options
Octa-core 1.8GHz

Memory

RAM:4GB ROM:64GB Memory

RAM:6GB ROM:64GB(optional)

PERFORMANCE

Model
H20U

Processor
Octa-core 2.2GHz; Octa-core 1.8GHz(optional)

Memory
RAM:4GB ROM:64GB

Extended memory
Micro-SD card,Up to 256 GB

O.S.
Android 9.0

Basic specifications

Dimensions
143.3mmx169mmx90.5mm

Weight
678g

Display
5.7 inch display,720*1440,1080*2160(optional)

Touch Screen
Ultra sensitive capacitive touch panel,support multi-touch,works with gloves and wet fingers

Main battery
Capacity:3.85V 9000mAh

Charging time
Less than 7 hours

Buttons
PWR button,Vol+/-button,scan button*2,custom button

Camera
Front 5MP,Top 16MP with flash

Sensors
Light+Accelerator+Proximity+Geomagnetic+Gyro

Scanning
Professional scan engine;Support international standard 1D/2D barcode; Support barcode displayed on screen and colored barcode.

Audio
Dual-Microphone (noise cancellation),Speaker(1.5W)

Interfaces
USB Type-C.Pogo-pin

Network Connections

Positioning
GPS、A-GPS、BeiDou、GLONASS、Galileo

WWAN
4G/3G/2G

Bluetooth
BT5.0+BR/EDR+BLE

Wi-Fi
2.4G/5G,IEEE 802.11a/b/g/n/ac/d/e/h/i/k/r/v/w;Roaming:802.11r/OKC/PMKID caching

Environment

Operating Temperature
– 20°C ~ 60°C (-4°F~140°F)

Storage Temperature
– 40°C ~ 70°C (-40°F~158°F)

Humidity
5%RH ~ 95%RH(non condensing)

Drop Specification
Device can withstand the impact of multiple 1.5m drops to smooth cement floor

Tumble
400 1.0m tumbles

Thermal Shock
– 40°C ~ 70°C (-40°F~158°F ) rapid transition

Sealing
IP67

ESD
±15kV air discharge; ±8kV direct discharge

WIRELESS WAN DATA AND VOICE COMMUNICATIONS

Radio Frequency Band
TD-LTE(B34/B38/B39/B40/B41)
FDD-LTE(B1/B2/B3/B4/B5/B7/B8/B12/B17/B19/B20/B25/B26/B28A/B28B)
TD-SCDMA(B34/B39)
CDMA2000 1x EV-DO Rev.A BCO(800MHz)
CDMA 1x GSM/EDGE/GPRS(850/900/1800/1900)

Mode
GPS、A-GPS、BEIDOU、GLONASS、Galileo

Wireless PAN

Mode
BT5.0+BR/EDR+BLE

Range
More than 10 Meters

Application Area
