DTB-H21D RFID Handheld Terminal

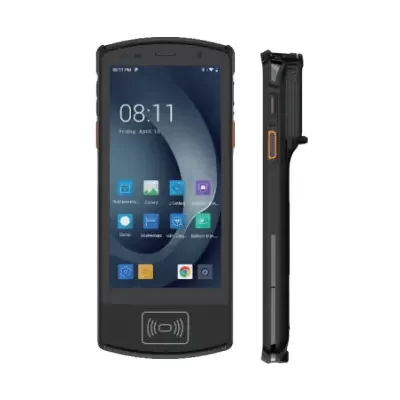

DTB-H21D-main

DTB-H21D RFID Handheld Terminal

Chip options
Octa-core 2.0 GHz

Memory

RAM:4GB

ROM:64GB

GET A QUOTE / DATASHEET

Product Features

· Using Excellent Scanning Code Module, With Faster Scanning Effect.

· Industry’s Leading Flagship Eight Core 64 Bit Processor, 2.0 GHz.

· HF Module Supports Reading Tags of iS015693 and 1S014443A/B Protocols.

· Build the new OS Android11.0 Makes the Customer System Run Smoother.

· 4500mAh Large Capacity Polymer Lithium Battery, Battery Life is More Long Lasting.

· IP65 DustProof and Waterproof, 1.5m Drop Resistance to Ensure Reliable Quality. Handheld Long RangeRFlD Reader Can Adapt to -20~+60°C Working Temperature, Even in Harsh Environments.



Performance Parameter

Model
DTB-H21D

O.S.
Android 11.0

CPU
Octa Core, 2.0 GHz

Memory
RAM: 4GB, ROM: 64GB

Extended Memory
Micro-SD card, Up to 256GB

Basic Specifications

Dimensions
180.5 * 76 * 15.6 mm

Weight
324 g

Display
5.5 Inch Display (720 * 1440)

Touch Screen
Ultra Sensitive Capacitive Touch Panel, Support Multi Touch,Works With Gloves and Wet Fingers

Main battery
3.85V 4500mAh(TYP.4600mAh)Removable Lithium Battery

Audio
1.5W Speaker, Microphone (supports noise reduction), Earpiece

Buttons
PWR Button, Vol+/- Button, Scan Button*2, Custom Button

Camera
Front 500W Pixels, Optional 800W Pixels; Top-Mounted 1300W Camera, Support Flash

Sensor
Light + Accelerator+ Proximity+ Geomagnetic + Gyro(Optional)

Scanner
Professional scanning head, Support International Standard 1D/2D Barcode; Support Barcode Displayed on Screen and Colored Barcode;

Fingerprint (Optional)
Optional Support for Biometric Fingerprint Modules, Which areProvided by Authorized Suppliers of the Ministry of Public Security

Card slot type
Nano-SlIM * 2, Support PSAM * 2, Micro SD Can Support up to 256GB Expansion

Environment

Operating Temp
-20℃~60℃

Storage Temp
-40℃~70℃

Humidity
5%RH~95%RH(No Condensation)

Drop Specification
Multiple 1.5m Drops to Concrete at Room Temperature

Sealing
IP65

ESD
+/-1 5kv Air; +/-8kv Contact

Camera

Front Camera
Fixed Focus, 1080p Video Recording; 500W Pixels, 800W(Optional)

Read Camera
Flash Light (700mA), Auto-Focus, 1080p Video Recording; 1300W Pixels

Scan Engine

Scan Angels Tilt
360°

Scan Angels Pitch
±60°

Scan Angels Skew
±60°



Barcodes Support
Linear: Codabar 11,Code 128,Code 2 of 5,Code 39,Code 93and 93i,EAN/JAN-13,EAN/JAN 8,IATA Code 2 of 5Interleaved 2 of 5,Matrix 2 of 5,MSl,GS1 Databar,UPC-AUPC E,UPC-AVEAN-13 with Extended Coupon Code,CouponGS1 Code 32(PARAF),EAN-UCC Emulation,GS1 Data Bar.
2D Stacked: Codablock A,Codablock F,PDF417,MicroPDF417.
2D Matrix: Aztec Code,Data Matrix,MaxiCode,QR Code,Chinese Sensible(Han Xin),Grid Matrix,Dot Code.
Postal: Australian Post,British Post.Canadian Post.China Post.Japanese Post,Korea Post.Netherlands Post.Planet Code.Postnet

RFID(HF)

RFID
Read/Write(HF)

Frequency Range
13.56MHZ

Protocol
Support ISO15693、ISO14443A/B 、Mifare、Felica

Support Mode
Card Emulation 、Peer-to-Peer 、 Reader

Reading Range
Read Distance 0-6cm(ISO15693),0-4cm(ISO14443A/B)

RFID(UHF)

RFID
Read/Write(UHF)

Frequency Range
902~928MHz & 865~868MHz(Can Be Adjustable)

Standards supported
ISO18000-6C(Standard EPC C1G2)

Working Distance
Reading Distance 1.5m(Distance is Related to The Tag)

RFID Antenna Gain
Increase 1.5dBi

GPS Positioning

Support Mode
GPS, A-GPS, BeiDou, GLONASS, Galileo

Frequency
GPS(L1 1.575GHz C/A code), BeiDou(B1 1.56GHz), GLONASS(L11.602GHz), Galileo(E1 1.589 GHZ/E2 1.561 GHz)

Cold Start Time
Less Than 40s

Max Channel
31 Channel

Sensitivity
-130dB(SNR Value 40dBHz)

Precision
5-10 Meters (Open Space)

Wireless LAN

Protocol
IEEE 802.11a/b/g/n/ac/d/e/h/i/k/r/v/w Protocol (2.4G15GDual Band WIFl), IEEE 802.11ax ready

Frequency
2.4G、5G

Working Channels
CH1~CH13,CH34~CH140,CH149~CH165(Depends on Area)

Security and Encryption
WEP(40 or 104 bit); WPAPA2 Personal (TKlP, and AES); WPA3 Personal (SAE); WPAPA2 Enterprise (TKlP and AES); WPA3 Enterprise 192-bit mode(GCMP-256)-EAP-TLS; Enhanced Open (OWE)

Fast roaming
PMKID Caching; Cisco CCKM; 802.11r(Over-the-Air); OKC, Can Set WiFi Roaming Threshold

Wireless WAN

WAN Mode
Dual-SlM,Dual-Standby

Worldwide Radio Frequency Band
TD-LTE(B34/B38/B39/B40/B41);
FDD-LTE(B1/B2/B3/B4/B5/ B7/B8/B12/B13/B17/B20/B28AB28B);
WCDMA(B1/B2/B4/B5/B8);
TD-SCDMA(B34/B39);
CDMA2000 1x EV-DO ReV A BCO (800MHz);
CDMA1x;
GSM/EDGE/GPRS(85019001180011900)

Bluetooth

Support Mode
BT5.0+BR/EDR+BLE

Connection Distance
More than 10 m

Accessories Type

Standard Accessories
Adapter*1,Type-C cable*1, Battery*1

Optional Accessory
Protective Film
