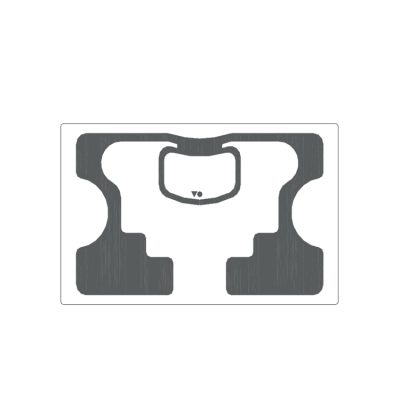

DTB-M50 UHF RFID Label

DTB-M50 UHF RFID Label

Air interface protocol
EPC Global Class1 Gen2 ISO 18000-6C

Frequency
(US Standard) 902-928 MHz

Tag dimensions
54 * 34mm

Mechanical Parameters

Base Material
PET

Liner Material
80g Coated Paper

Bottom Material
Release Paper

Tag Pitch
40mm

Quantity
2500 PCS / Roll (Can Be Customized)

Reel Inner Diameter
76.2 mm

Tag Dimensions
54 * 34 mm

Antenna Dimensions
50 * 30 mm

Electrical Parameters

Air Interface Protocol
EPC Global Class1 Gen2 ISO18000-6C

Frequency
(US Standard) 902-928 MHz

IC Type
Impinj M730

Memory
EPC 128 bits;TID 96 bits;User Memory:No

IC Life
100,000 Times

Data Retention
10 Years

Application Surface
Non Metal Surface

Reading Range
About 13 m (US Standard, Handheld 1W)

Other Parameters

Operating Temperature
-20°C~80°C

Storage Temperature
20°C~30°C

Storage Humidity
20~90 % Relative Humidity

Shelf Life
20°C~30°C,40~60% Relate Humidity. More than 2 Years.

M50-Self-adhesive Label Structure
M50-Unwinding Diagram
M50-Read Range
M50-Sensitivity
M50-Orientation Sensitivity

Application Area
