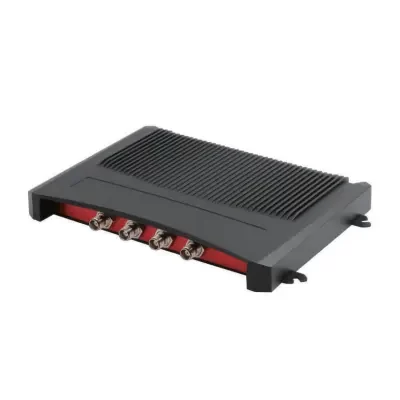

DTB-UR04C UHF Four Channel Reader

· Using lmpinj E710 (or Optional R2000) UHF Chip;

· Self-Intellectual Property;

· 840~960MHz Frequency Band (Frequency Customization Optional);

· Balance on lmpinj E710 High Performance RF Engine, Excellent Multi-Tag Anti-Collision Operation，Fully SUPPPORT EPC Class1 G2 Protocol Tags;

· FHSS or Fix Frequency Transmission, Support RSSl;

· RF Output Power up to 33dbm(adjustable);

· Inventory Speed>1000 Tags/S AT Peak (Shall Be Uccordance with the Working Environment，Tags, Antenna, etc. at Site);

· Tag Buffer: 1000pcs@96bitsEPC;

· Support 4 TNC Antenna Port with Antenna Failure-Detection;

· Low Power Dissipation with Single +9 DC Power Supply, POE (Power over Ethernet) is Optional;

· Support RS232, USB(Slave), RJ45 (TCP/IP), Provide WiFi and Other Interface for Choice;

· Provide DLL and Demonstration Software Source Code to Facilitate Further Development;

· High Reliability Design, Meet The Requirements of Harsh Working Environment.
