RAIN RFID, a technology based on the UHF (Ultra-High Frequency) standard, has become a cornerstone of modern asset tracking, inventory management, and IoT connectivity. Unlike its close relative, NFC, RAIN RFID enables long-range, simultaneous reading of hundreds of tags without direct line-of-sight. This power, however, hinges on one critical component: the tag itself. Selecting the right RAIN RFID tag is not a one-size-fits-all endeavor. It is a nuanced decision that can determine the success or failure of an entire deployment. Here’s a detailed guide on what to consider.
Understand the Basics: What is a RAIN RFID Tag?
At its core, a RAIN RFID tag is an integrated circuit (IC) attached to an antenna, mounted on a substrate to form an inlay. This inlay is then converted into a label, a hard tag, or another form factor. The tag is passive, meaning it has no internal battery. It harvests power from the radio waves emitted by a reader to energize its chip and broadcast back its unique data.
The magic lies in the interplay between the chip’s capabilities and the antenna’s design. A poorly matched pair will lead to poor read range and unreliable performance. Therefore, your first task is to deeply understand your application’s specific needs.
The Operating Environment: The Ultimate Test
The environment where the tag will live is the most significant factor influencing your choice.
Material Composition (The “Tag on Metal” Problem): This is the classic hurdle. Placing a standard RFID tag directly on a metal surface or a container filled with liquids (like water or alcohol) is a recipe for failure. Metals reflect radio waves, and liquids absorb them, both effectively killing the tag’s ability to function. For these challenging assets, you need specialized tags.
On-Metal Tags: These tags are designed with a protective barrier or a special antenna design that creates a gap between the tag and the metal surface, allowing them to perform reliably. They are typically thicker and more rigid.
Tags for Liquids: Tags designed for use near liquids often feature a tuned antenna that works effectively despite the signal absorption.
Physical Stress: Will the tag be subjected to impact, abrasion, vibration, or extreme pressure? For tracking tools on a construction site or parts in a manufacturing plant, you need a rugged, often hard-case tag made from materials like ABS plastic or epoxy, designed to withstand the abuse.
Temperature and Weather: Is the tag going into a industrial freezer, an outdoor yard, or an autoclave? Standard tags have an operating temperature range of -25°C to +70°C. For extreme cold (e.g., cryogenic environments), heat (e.g., near machinery or in sterilization processes), or outdoor weathering (UV exposure, rain, condensation), you must select tags rated for those specific conditions.
Form Factor and Attachment
How and where you attach the tag is just as important as the tag itself.
Adhesive Labels: The most common form factor. They are ideal for slapping on boxes, files, and retail products. The key here is the adhesive. For a cardboard box in a clean warehouse, a standard permanent adhesive works. For a dusty, greasy surface in a warehouse, you might need a high-tack, gummy adhesive. For a temporary assignment on a reusable container, a removable adhesive is necessary.
Hard Tags: These are durable, often reusable tags designed for harsh environments. They can be attached via screws, bolts, cables, or zip ties. Think of tracking metal gas cylinders, pallets, or large industrial assets.
Custom and Embedded Solutions: Sometimes, the tag needs to be invisible or integral to the product. For example, a tag can be embedded inside a garment’s care label, molded into a plastic pallet, or incorporated into a ID badge. This requires working closely with tag manufacturers on a custom solution.
Practical Deployment Tip: Always conduct an on-site sample test. Order a small batch of candidate tags and test them in the exact real-world conditions on the actual items you plan to track. A tag that works perfectly in the lab might fail miserably on your specific product packaging.
Reading Between the Specifications
Not all tags are created equal. You need to analyze the spec sheet.

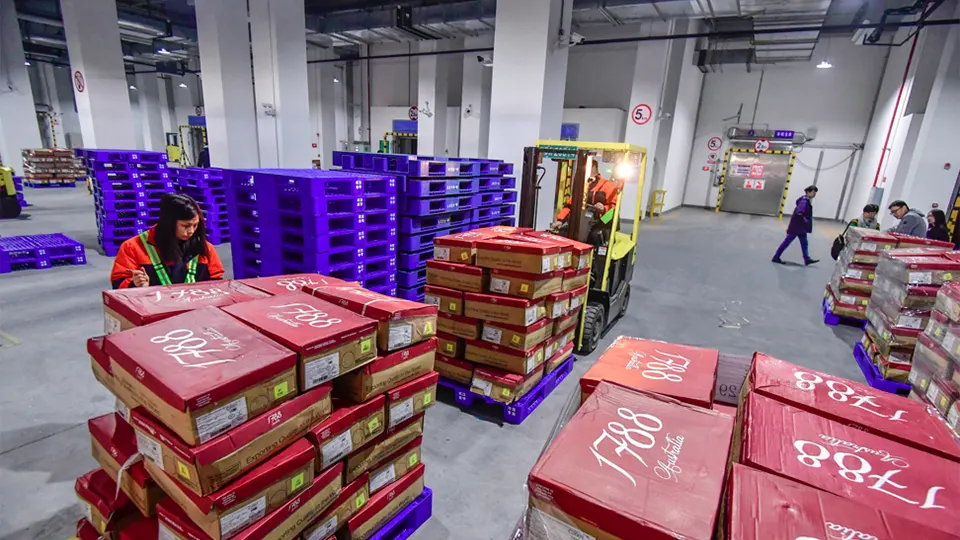

Read Range: How far away do you need to be to read the tag? A warehouse might require 10-meter reads from a forklift-mounted reader, while a retail point-of-sale may only need a few centimeters. Read range is influenced by the tag’s sensitivity and the antenna design.
Memory Capacity: The RFID chip has memory. How much do you need? A simple EPC number for identification might only require 96 bits. But if you want to write data directly to the tag throughout its lifecycle—such as maintenance history, expiration dates, or serial numbers—you’ll need a chip with more user memory (e.g., 512 bits or even 4K bits).
Anti-Collision Performance: A key advantage of RFID is reading many tags at once. A high-performing tag can be read quickly in a dense environment (like a full pallet of goods), while a cheaper tag might be slower or get “lost” in the crowd.
It’s More Than Just the Price Per Tag
The cheapest tag is almost never the most cost-effective solution. You must consider the Total Cost of Ownership (TCO).
Tag Cost: Prices can range from under $0.10 for a basic paper label to over $15 for a rugged, specialized on-metal tag. Volume purchases dramatically reduce the per-unit cost.
Infrastructure Cost: The tags must be read. This requires readers (fixed or handheld) and antennas. A higher-performing tag might allow you to use fewer readers and antennas to cover the same area, saving thousands in infrastructure costs.
Labor and Process Cost: A reliable tag system reduces the time employees spend manually counting inventory, reduces errors, and prevents shrinkage. The ROI comes from these operational savings. A system that fails due to poor tag choice has a negative ROI, no matter how cheap the tags were.
A Practical Cost Scenario: A logistics company wants to track pallets in its yard. Using a standard $0.15 label would be a total failure—it would fall off in the rain and not read on the metal pallet racks. A $8 rugged, on-metal tag attached with a zip tie works perfectly. While the tag is 50x more expensive, the project succeeds. The ability to instantly locate any of the 5,000 pallets in the yard saves 20 hours of manual labor per week and eliminates lost pallet fees. The ROI is achieved in under four months.
Compliance and Regulations
RAIN RFID operates in the 860-960 MHz frequency range, but the exact power and channels allowed differ by region (e.g., FCC in North America, ETSI in Europe, MIC in Japan). Most modern tags are designed to be globally compliant, but it’s crucial to verify that your chosen tag and reader setup are configured for your region’s regulations to avoid legal issues and performance problems.
Apparel Retail
A global apparel retailer wanted to implement item-level tagging to improve inventory accuracy from distribution centers to the store floor.
Challenge: Tags had to be small, discreet, and readable on a variety of materials (cotton, denim, polyester, leather). Most critically, they had to remain functional after being crumpled, folded, and—the biggest test—washed and dried if attached to a care label.
Selection Process: They tested dozens of inlays. They sewed them into care labels and ran them through industrial washers and dryers. They tested read performance on denim jeans (which are surprisingly difficult due to their density and metal buttons) and fluffy sweaters.
Solution: They selected a flexible, laundry-resistant tag with a specific antenna design that could handle the detuning effects of being close to the body and various fabrics. The tag cost was around $0.12, but the investment was justified.
Outcome: Store inventory counts that took 40 hours manually were reduced to 2 hours with 99.9% accuracy. Out-of-stock situations decreased by 60%, and sales increased due to better product availability. The right tag choice was the linchpin of this multi-million dollar ROI project.
Choosing a RAIN RFID tag is a strategic decision. It requires moving beyond the datasheet and thinking holistically about the asset, the environment, the business process, and the total system cost. Start by defining your goals with absolute clarity. Then, partner with a knowledgeable RFID solutions provider. Finally, and most importantly, test, test, and test again. Piloting a variety of tags in your real-world scenario is the only way to de-risk your project and ensure that the invisible workhorse of your RFID system—the tag—performs flawlessly day in and day out.
