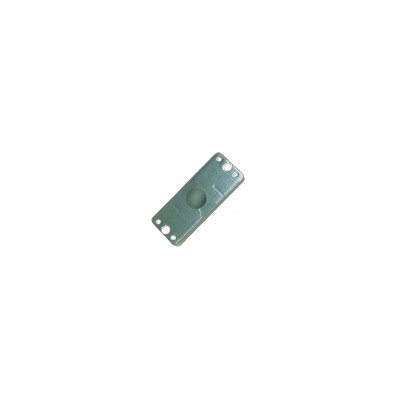

DTB-PCB2510UA PCB Anti-Metal Tag
Reading Range
Up to 3 m
Tag Dimensions
25 × 10 mm
IC Type
NXP UCODE8
Global Delivery
Factory Direct
ISO 9001 Certified
OEM & ODM
Free Samples
Expert Support
Mechanical Specification
Base Material
PET
Weight
About 1g / Piece
Thickness
2.1mm
Color
Black
Installation Method
Adhesive, Screws
Tag dimensions
25 × 10 mm
Electrical Specification
Air interface protocol
EPC Global Class1 Gen2 ISO 18000-6C
Operational frequency
(US) 902-928MHz
IC type
NXP UCODE 8
Memory
EPC 128 bits; TID 96 bits; User Memory: No
IC Life
100,000 Times
Data Retention
10 Years
Application Surface
Metal Surface
Read range
About 3 m(US Standard, Handheld 1W)
Other Parameters
Operating temperature
-20°C～100°C
Storage Temperature
-30°C～120°C
Sealing Level
IP68
Certification
RoHS
Application Area
Logistics & Supply Chain
RFID increases visibility of processes in the areas of logistics and supply chain management. This real-time updated information help us maximize efficiency and reduce operating…
Asset Management
Track, monitor, and manage your assets in real time with RFID technology—cutting costs and increasing control.
